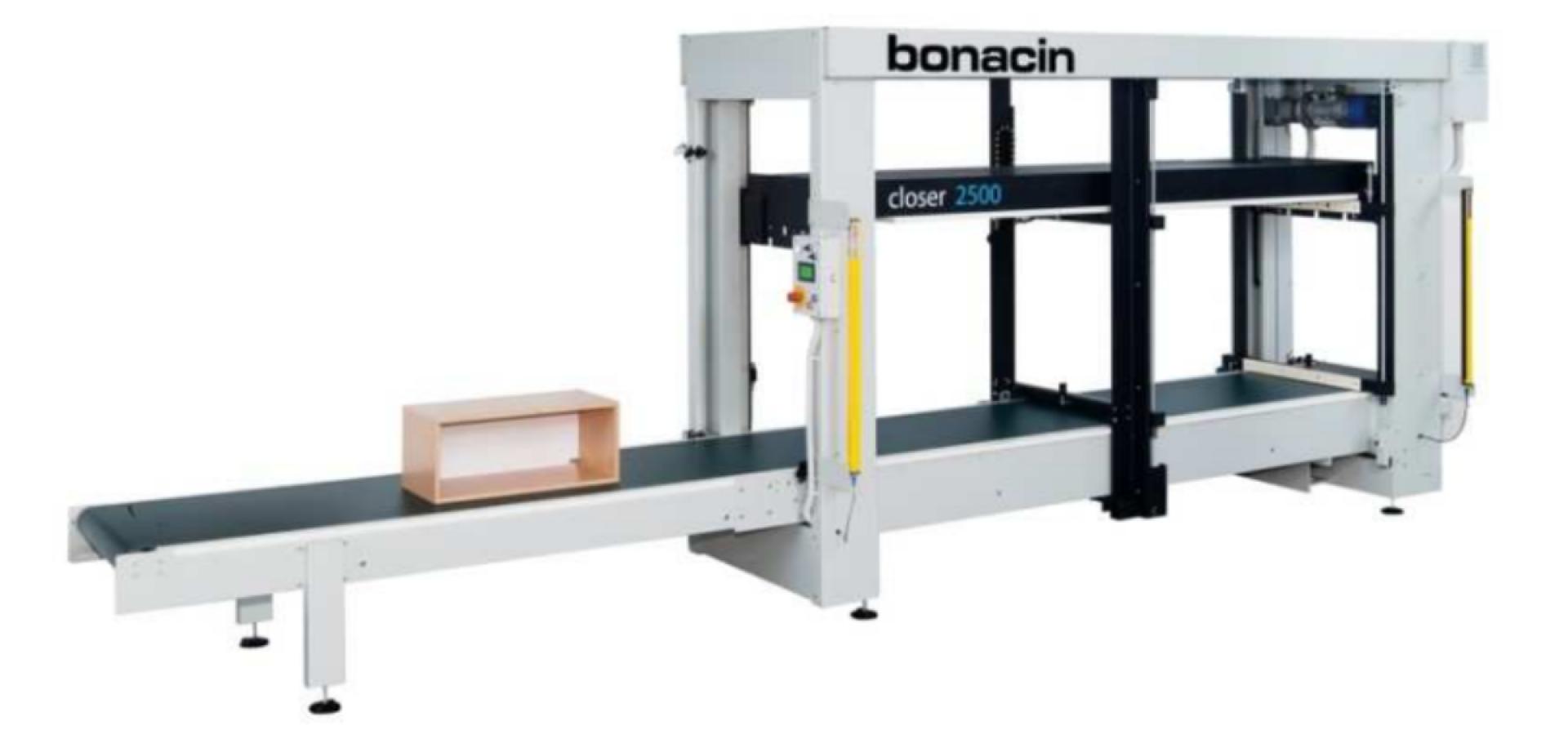

New Bonacin Closer 2500 – Industrial Cabinet Clamping Machine
Boost your furniture production with the New Bonacin Closer 2500 Clamping Machine, designed for efficiency, precision, and flexibility in cabinet assembly. Ideal for woodworking shops and furniture manufacturers, this self-setting electromechanical cabinet clamp ensures perfect squaring of furniture with minimal manual effort.
Key Features:
-
Self-Setting Electromechanical Clamp: Ensures consistent clamping with horizontal and vertical pressure control.
-

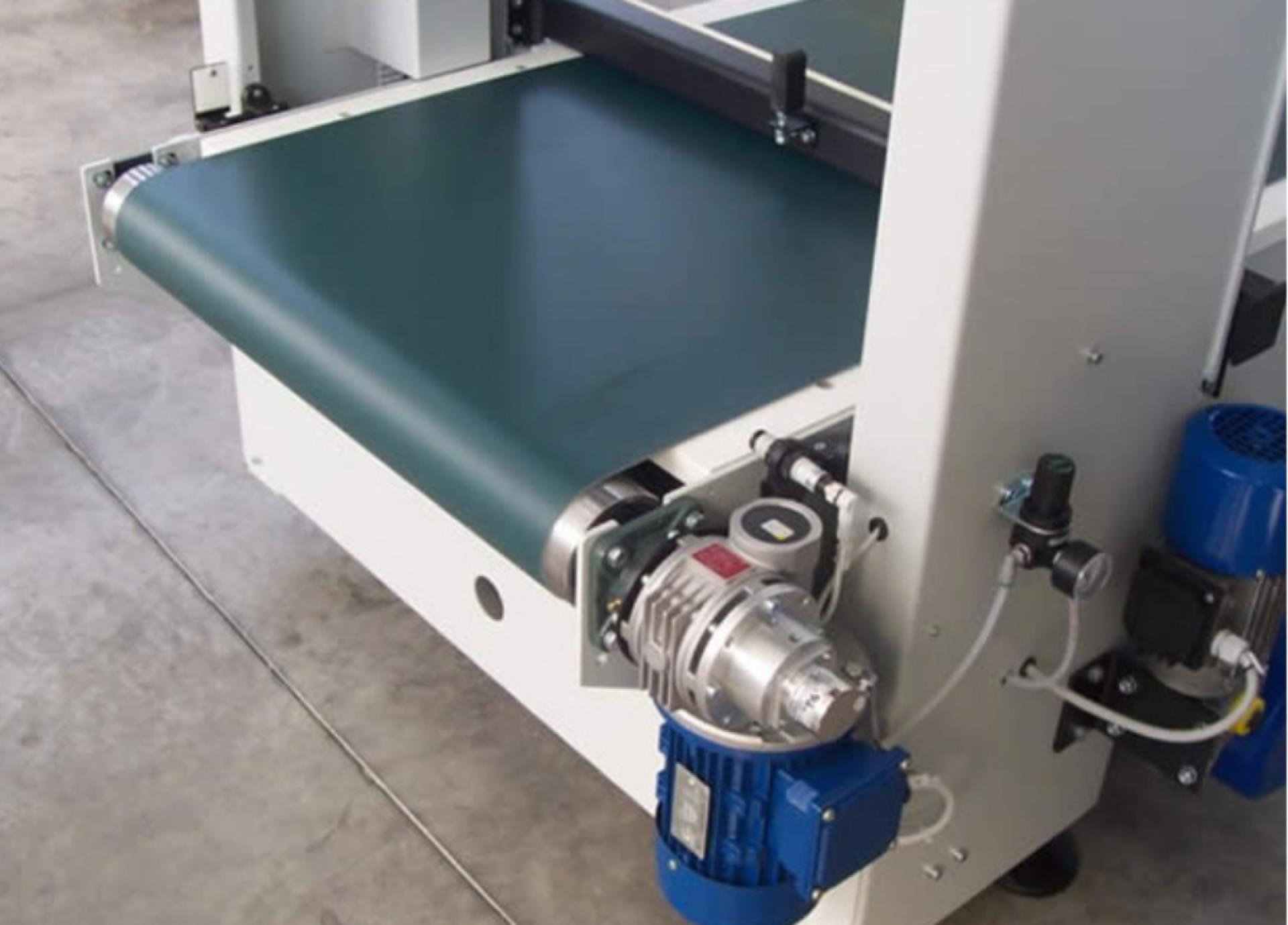

Integrated Assembly Table with Conveyor: Includes an inverter-controlled roller conveyor for smooth handling.
-
Touch Screen Control Board: Easily adjust pressing time, vertical & horizontal pressure, monitor production count, and receive alarm notifications.
-
Flexible Clamping Dimensions:
-
Max Height: 1200mm | Min Height: 280mm
-
Max Length: 2500mm | Min Length: 240mm
-
Max Width: 670mm
-
-
Adjustable Work Table Height: 500–700mm for ergonomic operation.
-
Powerful Clamping Force: Up to 1200 Kg vertical and horizontal pressure.
-
Conveyor Speed: Adjustable via inverter from 19–36 m/min.
-
Heavy-Duty Construction: Solid welded structure with two motorized pressure frames moving along precision guides.
Technical Specifications:
-

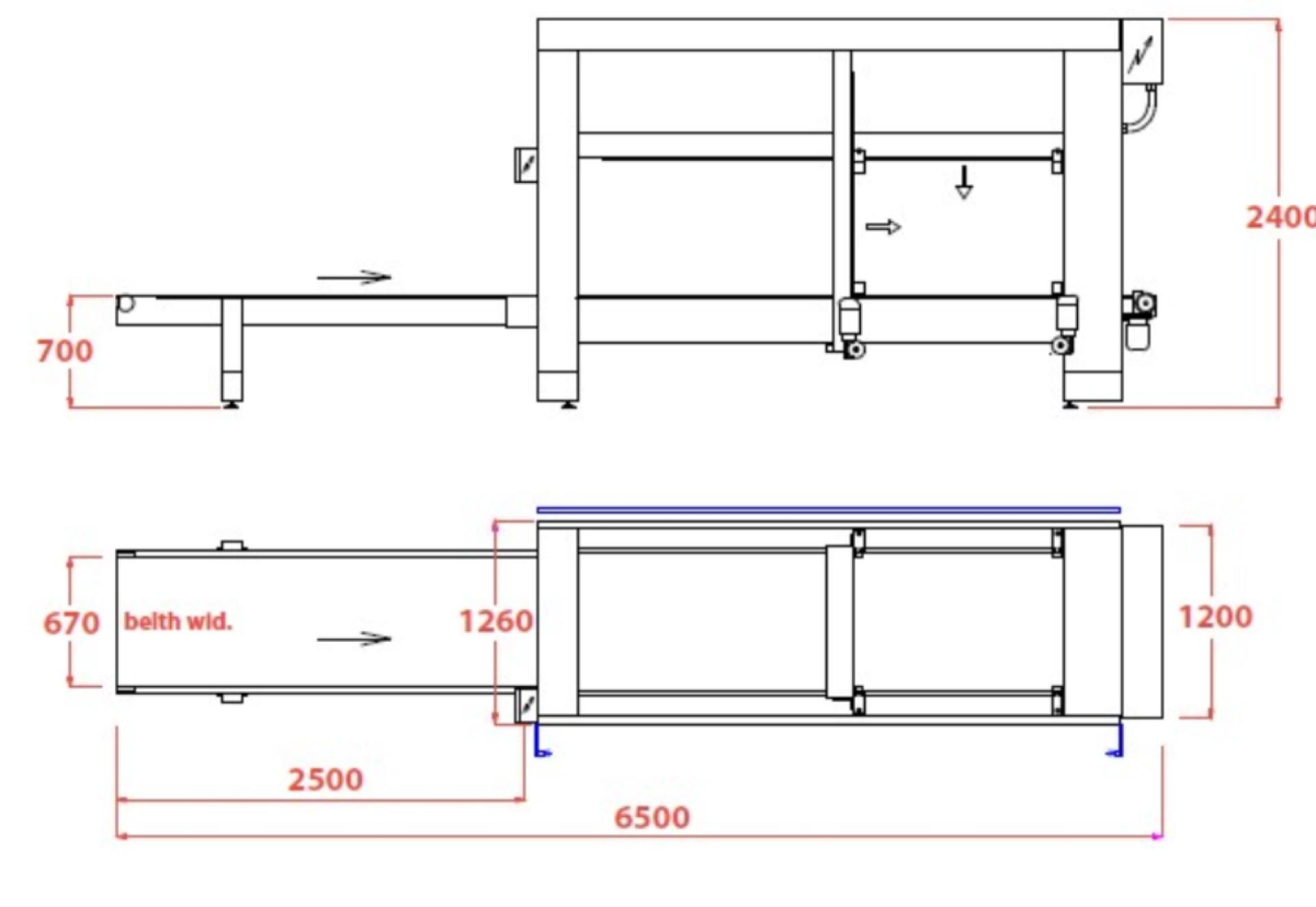

Overall Dimensions: 6500 x 1200 x H-2400 mm
-
Transport Dimensions: 4000 x 1200 x H-2220 mm (fits in a 20” container)
-
Power Supply: 400V / 50Hz, 4 KW installed power
-
Weight: 1900 Kg
-
Lead Time: 90 days
Optional Upgrades:
-
Automatic device for clamping cabinets with overhanging tops
-
Safety photocells on the back side
-
Special versions: 800mm width or 2800mm length
-
Intermediate pressers (manual or automatic)
Service & Warranty:
-
12-month warranty included
-
Delivery, commissioning, and training available
-
Flexible payment terms: 30% deposit, 70% on dispatch
Optimize your cabinet production line with precision and efficiency. Contact us today for a personalized quote or more information!
| Variation | Price |
|---|---|
| Offer Price | £59450 |
