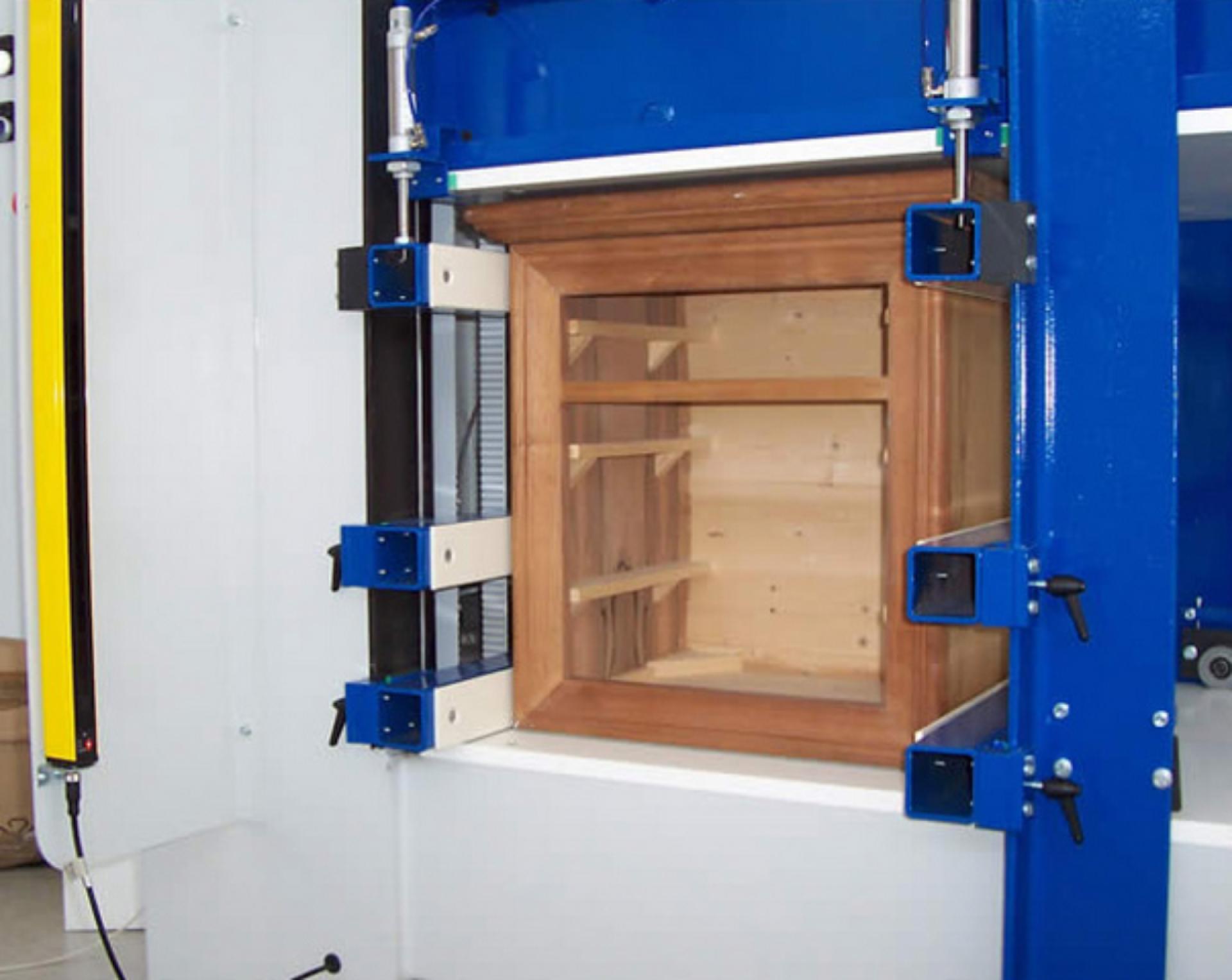

Bonacin Nina Case Clamp – Precision Cabinet Clamping Machine

Enhance your furniture production with the Bonacin Nina Case Clamp, a high-performance electro-mechanical press designed for precision veneering and furniture assembly. Ideal for both small and large woodworking workshops, this versatile machine delivers high production capacity while keeping operating costs low.



Available Sizes:

• 2500mm x 650mm – Standard size for most furniture projects

• 2500mm x 800mm – Special size for larger panels and furniture pieces



Key Features:

• Electro-Mechanical Cabinet Clamp: Motor-driven pressing force, electronically regulated for consistent performance.

• Automatic Pressing Cycles: Controlled via PLC system for reliable, repeatable results.

• Adjustable Pressure: Vertical and horizontal pressing force up to 1200 Kg, adaptable for various materials.

• High-Speed Operation: Pressing velocity 90 mm/sec; adjustment velocity 200 mm/sec.

• Silent & Low-Maintenance: Ensures a comfortable working environment with minimal upkeep.

• Safety First: Equipped with a protective mesh on the backside for operator safety.

• Compliance: UL/CSA 230V 60Hz version; conforms to 206/42/CE directives.



Technical Specifications – Standard Machine:

• Max Clamping Height: 1250 mm | Min: 200 mm

• Max Clamping Length: 2500 mm | Min: 200 mm

• Max Clamping Width: 650 mm (optional 800 mm available)

• Worktable Height: 500 mm

• Vertical & Horizontal Pressure: 0–1200 Kg

• Installed Power: 4 KW

• Weight: 1400 Kg

• Overall Dimensions: 4000 x 1000 x H-2200 mm

• Transport Dimensions: 4000 x 1000 x H-2200 mm

• Lead Time: 90 days



Optional Upgrades:

• Automatic device for clamping cabinets with overlapping tops

• Special machine with clamping width 800 mm



Service & Warranty:

• 12-month warranty included

• Delivery, commissioning, and training available

• Payment terms: 30% deposit on order, 70% upon dispatch



Whether you’re producing standard furniture or custom pieces, the Nina Case Clamp ensures consistent quality, energy efficiency, and reliable performance for every project.



Upgrade Your Workshop with the Bonacin Nina Case Clamp – Contact us today for a personalized quote!
