In Stock Now!

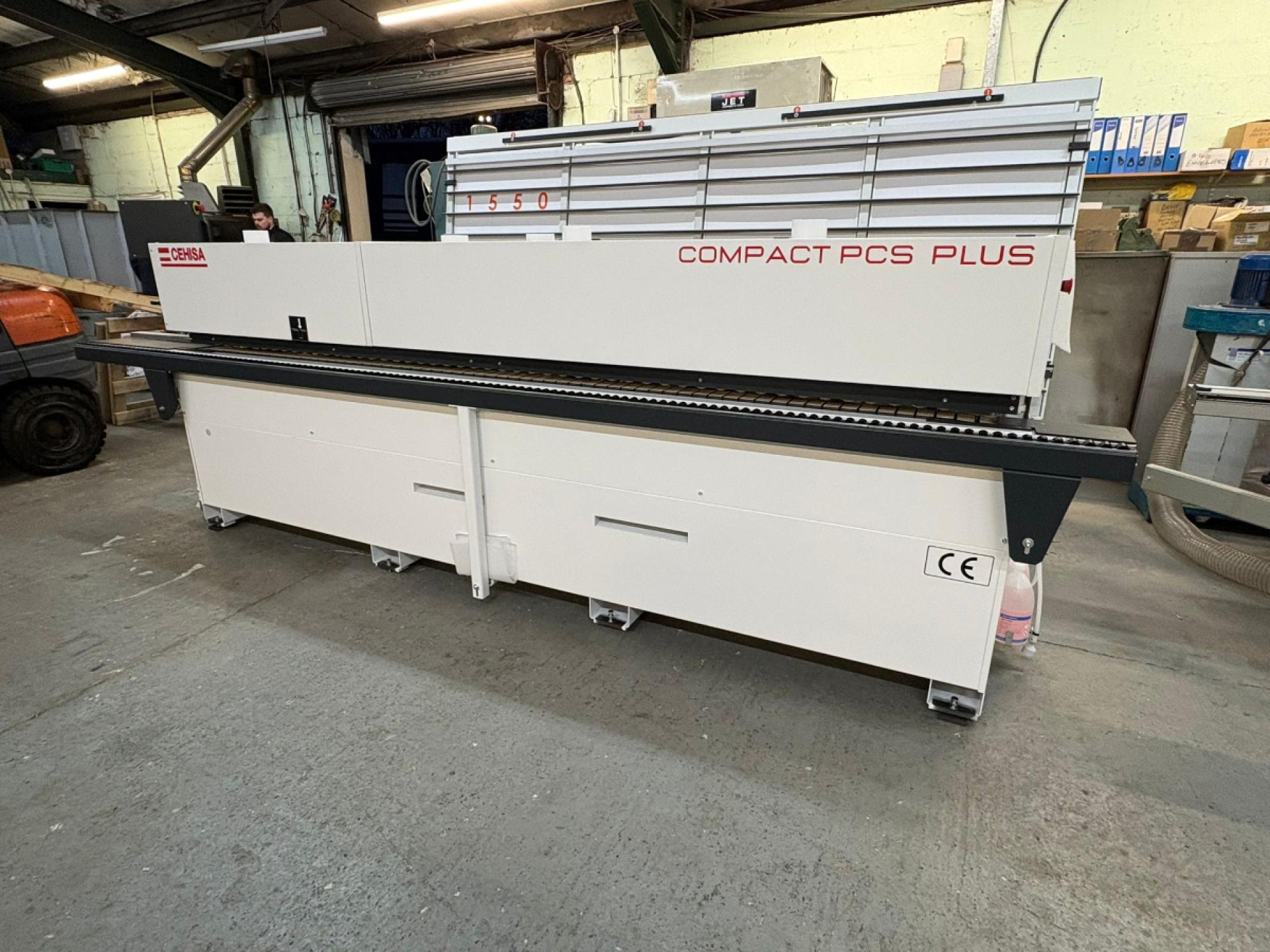

New Cehisa Compact PCS-Plus Edgebander (High Spec)

#premilling #cornerrounding

The COMPACT PLUS Series is the evolution of the classic COMPACT Series, one of CEHISA’s best sellers.

Higher working speed (12m/min) and double HF motor End Trim unit with tiltable saws.

COMPACT Series, with a remarkable versatility and a compact size, has been designed to satisfy the most complex needs of carpenters turning it into one of the best quality-price relationship edgebander of the market.



Technical Specifications

Panels:
Particle board, plywood, MDF... from 8 to 60mm thickness.

Edges:
Melamine, PVC, ABS, PP, wood, formica, acrylic... 0,4 to 3mm in rolls and up to 5mm in solidwood.

Adhesives:
EVA/PUR/PO and AirFlow System.

Equipment:
HF motors controlled by independent electronic converters, encoder controlled working groups and PLC controlled by TFT touch screen.

Optionally, the infeed has been equipped with non-stick sprayers to make for stable machining that minimise the chances of any defects or imperfections. The outfeed has similarly been improved but with a cleaning spray which makes for a finished product like no other.

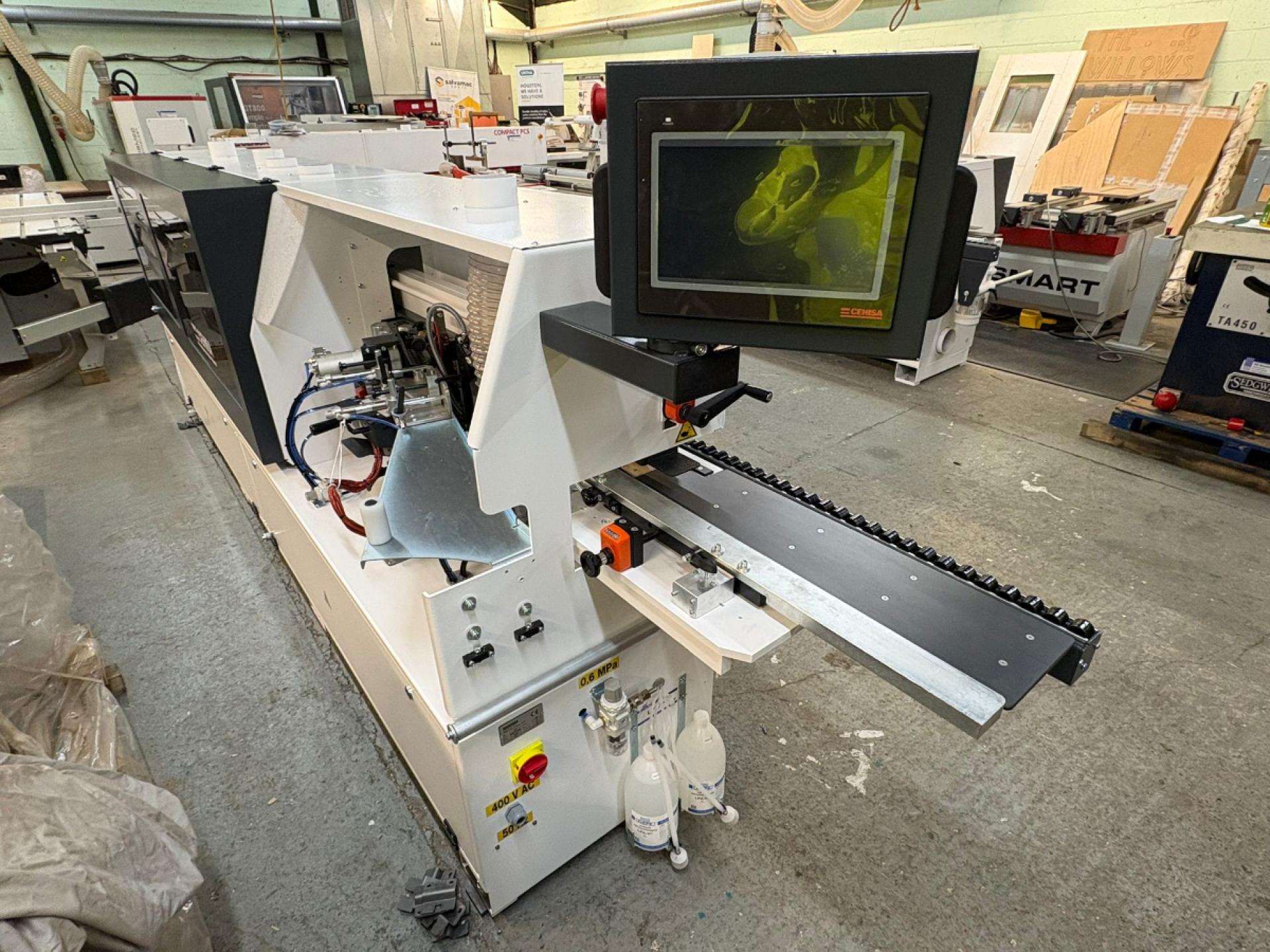

The ergonomically located LCD touchscreen and its simple to use, intuitive interface, functions and adjustments can be modified safely and with great ease.

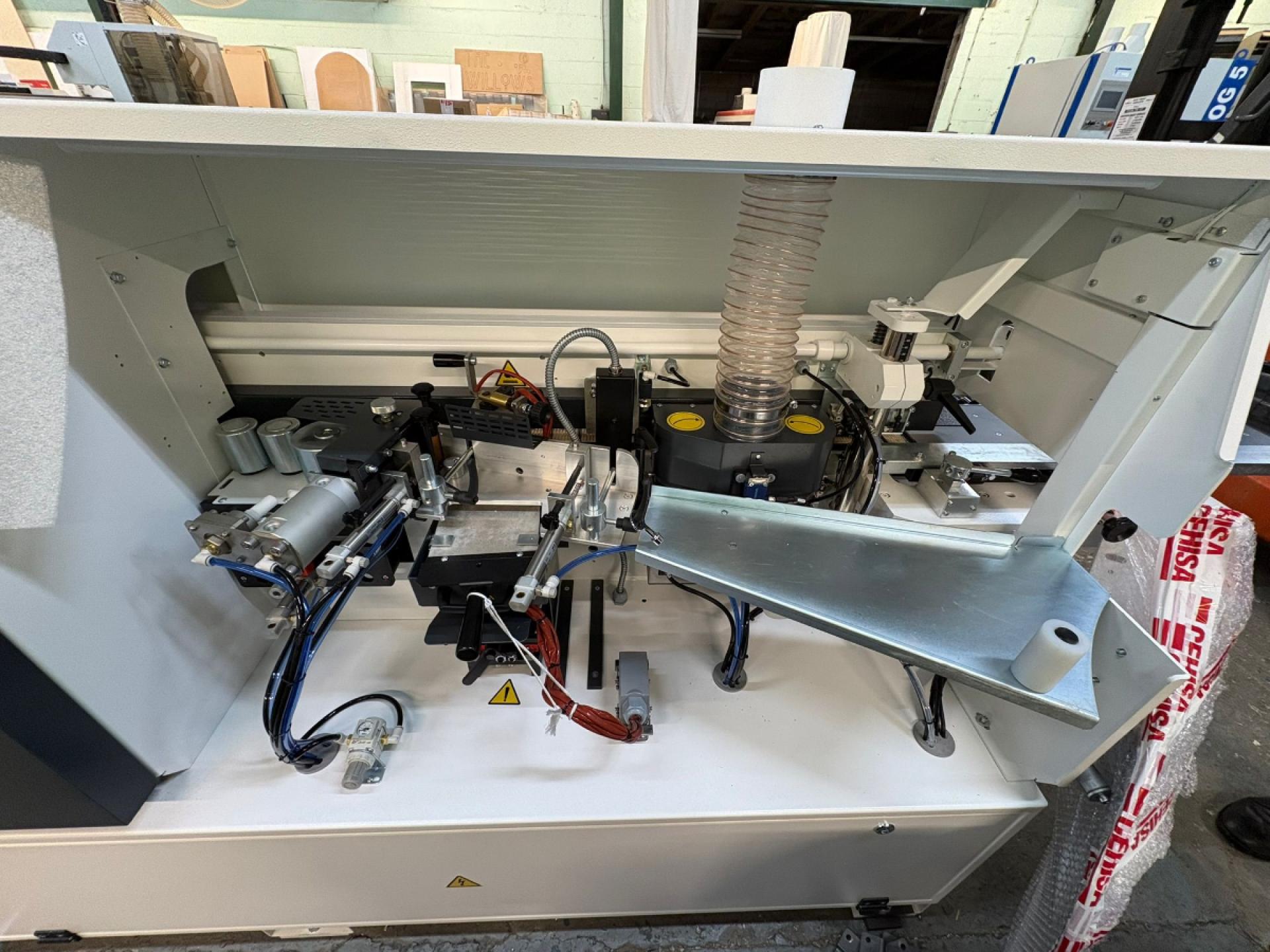

Other Features Include:

• Hot Melt Glue Pot

• Edge Pressing Rollers

• 2 XHF Morors Trimming Unit

• Top and Bottom Radius Trimmers

• Profile Scrapers



Optional Features Included:

• Radius scraper RB-6 w /pneumatic setting on/off

• Glue scraper RR-8

• Buffing unit PC-3

• Duo melt EVA-PUR

• New Quick Change Glue pot system

• Non stick agent spray infeed

• Cleaning agent spray at exit

• 3 x pneumatic positions on pressure rollers and T&B Trim

• Pneumatic setting ON/OFF of V-8

• Pneumatic setting ON/OFF of RR-8

• 2 X Pneumatic positions of CR-2

• Pneumatic setting ON/OFF of CR-2

• Extra large infeed fence

• Cabin LED Lights

• Infrared lamp

• Diamond Pre-milling cutters H65

• LED Motion system
