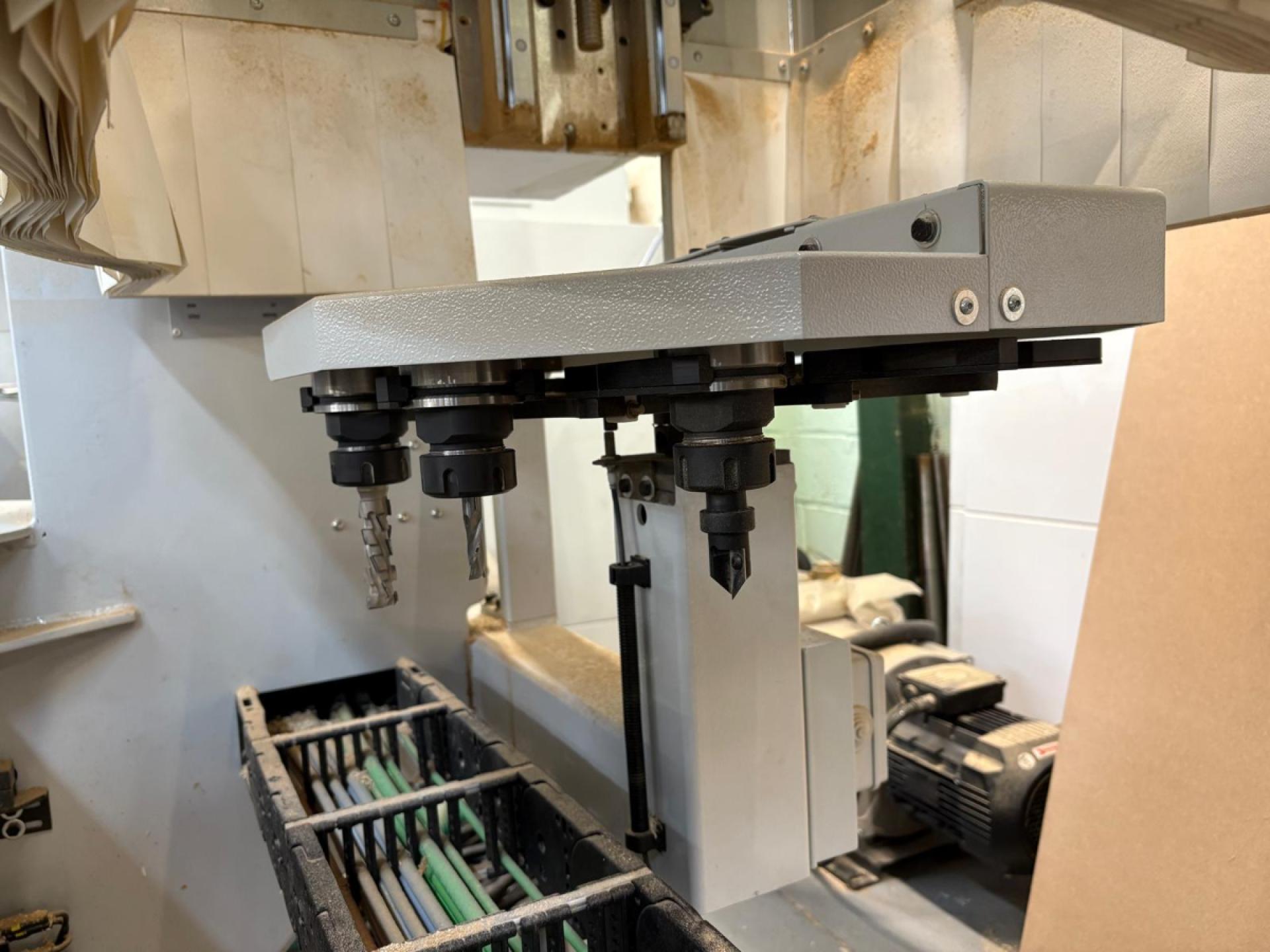

CNC machine mod. SMART 30 with fixed working table and mobile head carriage with three continuous displayed axes, suitable for the machining of wood, also composite and plastic materials. Structure The machine structure allows to exploit the space available at best. The pieces are always fixed to the table, as movements along the three axes X, Y and Z are carried out by the head carriage and the operating head. Basement The base frame and the head carriage are made of electric welded steel, which is normalized and suitably ribbed in order to obtain maximum stiffness and long-lasting life. Movements The X axis movement is carried out on a high precision rack system, while the Y and Z axis movement is carried out by means of threaded worm screws coupled to high precision and high reliability preloaded ball lead nuts with slack recovery. All bearings run on linear guides with prismatic geometry fitted with ball circulation tracks coupled to high precision preloaded slides. The screws are driven by brushless motors to achieve the best finish and long-term reliability. New Pod and Rail Cosmec Smart 30 Technical Data -Quick speed X-axis: 60 m/min -Quick speed Y-axis: 60 m/min -Quick speed Z-axis: 15 m/min -Vectorial speed 90 m/minute -Stroke X-axis: 4550 mm -Stroke Y-axis: 1790 mm -Stroke Z-axis: 430 mm -Max. Panel Passage: 170 mm -Working area: 4100 mm. x 1350 mm. -Weight 3920 Kg. Accuracy The positioning accuracy is guaranteed by coaxial ROTARY ENCODER with resolution capability set to + / - 0.005 mm and angular resolution set to + / - 0019 ° It is universal workshops in particular where affordable CNC technology is becoming increasingly important. Premium machines for premium requirements
