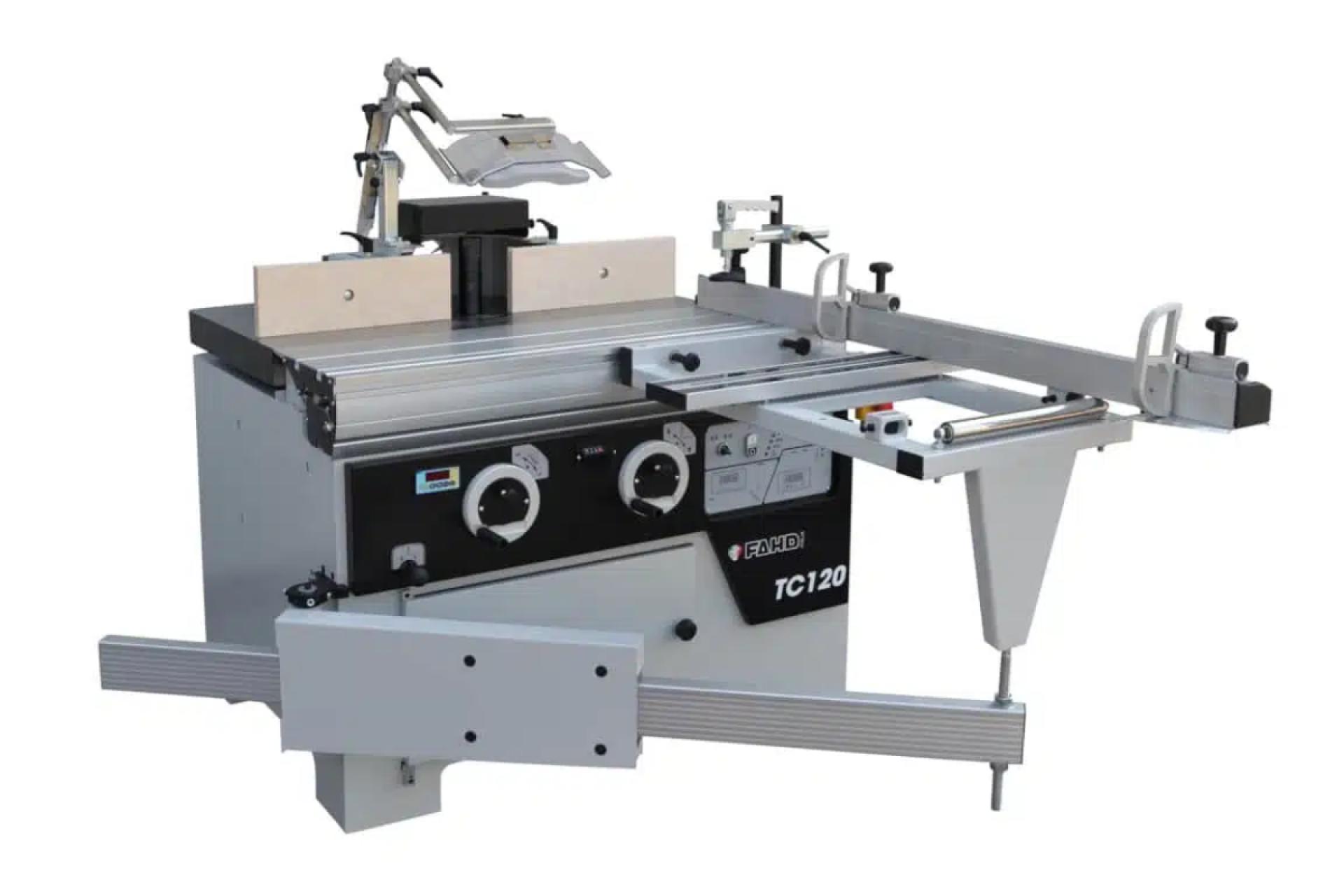

The FAHD Italia Spindle Moulders are commonly used on an artisanal or industrial scale. For that reason our range of products covers the various needs of artisans and hobbyists right up to the industrial needs of the woodworking sector. New FAHD Italia TC 120 Spindle Moulder with Carriage Tech Spec- -Fixed working table dimensions (mm) 640×1100 -Aluminium sliding table dimensions (mm) 360×1100 -Available spindle diameters (mm) 30-35-40-50 -Max table opening (mm) 350×80 -Vertical stroke (spindle Ø 30-35) 140mm -Vertical stroke (spindle Ø 40-50) 180mm -Working table height 890mm -Spindle speed RPM 2500/4200/6000/8000/10000 -Motor power HP 5,5 -Weight 650kg Standard Equipment -Spindle hood -Angular cutting device -Eccentric clamp -2 dust extraction hoods ( 1 x ø 60 mm, 1 x ø 120 mm) -Manual star/delta switch CE Equipment -Spindle hood -Fence with linear handling through hand-wheels and displacements displayed by decimal mechanical numerators. -Scrolling on linear ball recirculation guides -2 dust extraction hoods ( 1 x ø 80 mm, 1 x ø 120 mm) -Profiling spindle hood -Rounding spindle hood -Automatic star/delta switch -Self-braking motor -Spindle upstroke readout -Readout for spindle speed -Spindle protections CE type -Electrical configuration for feeder UPON REQUEST -Tilting spindle moulder 45° with electronic digital readout for corner reading -Version with aluminium sliding table (length mm 2250) -Guide with linear handling through hand-wheels and displacements displayed by decimal mechanical numerators. Scrolling on linear ball recirculation guides. (standard version) -Motor HP 7,5 -Motor HP 10 -Motor HP 12 -Supplement for self-braking motor with brake release (standard version) -Overload protection and emergency button (standard version) -Reverse rotation (standard version) -Reverse rotation (CE version) -Spindle height digital readout -Spindle height mechanical readout (standard version) -Readout for spindle speed (standard version) -Tenoning table (standard version) -Tenoning hood -Tenoning table and tenoning hood -Frontal table extension -Lateral tables extension (total length 2200 mm) -Spindle shaft with slot (standard version) -Interchangeable housing for spindle MK4 -Extra upper spindle for MK 4 -Aluminium fences for spindle hood “lamellar” type -Aluminium fences for spindle hood -Profiling protection CE type (standard version) -Safety rounding cup TAPOA type (standard version) -Revolving support to exclude the spindle hood -Consolle control panel -Hanging control panel -Powered spindle upstroke with electronic positioning -Powered spindle tilting with electronic positioning -Powered spindle tilting and upstroke managed by VK3 control panel with manual and EURO 1.945 automatic function and possibility of incremental displacements -Spindle speed managed by inverter SPINDLE MOULDER FOR TRIMMING This machine allows you to create a border in the wood making it ideal for numerous uses, such as in different types of shutters, and in frames and doors. In general, all wood milling machines are suited to trimming solid wood, whilst only certain models allow tenoning. There are various models of FAHDITALIA tools available, all of which are capable of trimming, whereas only the TC and TT models are also capable of tenoning. SPINDLE MOULDER FOR TENONING The spindle moulder for tenoning is a specific configuration of the basic tool; this is used in the tenoning process simply to create the joint between two jambs. For this procedure, however, a slightly different configuration of the tool is required and therefore not all of our models are suited to tenoning.. Each machine is designed and produced entirely in ITALY. All our Spindle moulder machines can have the chuck mounted at the top of the shaft to enable the mounting of pantograph milling tools, and can also be equipped with interchangeable shafts. They are also available with management software upon request so that procedures may be managed from a control panel.
