Fimal P450AX Sliding Table Panel Saw
Discover the top class of Fimal panel saws
Press Enquire Now below for price!

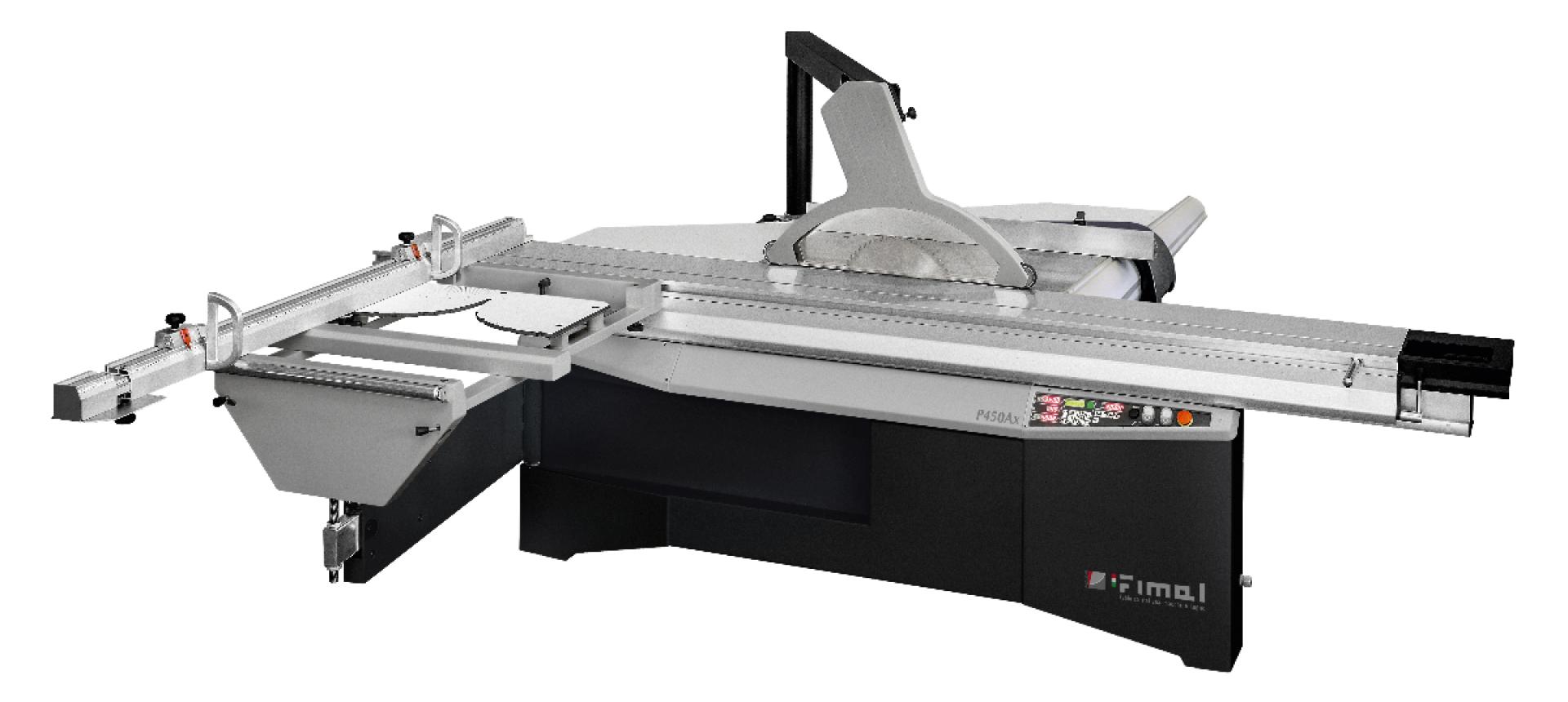

The Fimal P450AX is the flagship motorised sliding table panel saw developed for the highest requirements in woodworking, business and industry. Built in Italy, the P450AX combines heavy-duty construction with intelligent electronic controls, delivering effortless operation and consistently precise cutting for solid timber, MDF, plywood, laminated panels and composite materials.
Engineered for Accuracy
At the heart of the P450AX is Fimal's long-shaft saw unit, designed to maximise rigidity while minimising vibration. The extended bearing spacing provides exceptional blade stability, ensuring clean, accurate cuts even when machining large panels or thick hardwoods.
The heavy-duty anodised aluminium sliding carriage runs on hardened and ground prismatic guides with precision bearings, producing an exceptionally smooth movement and maintaining cutting accuracy throughout the full stroke.

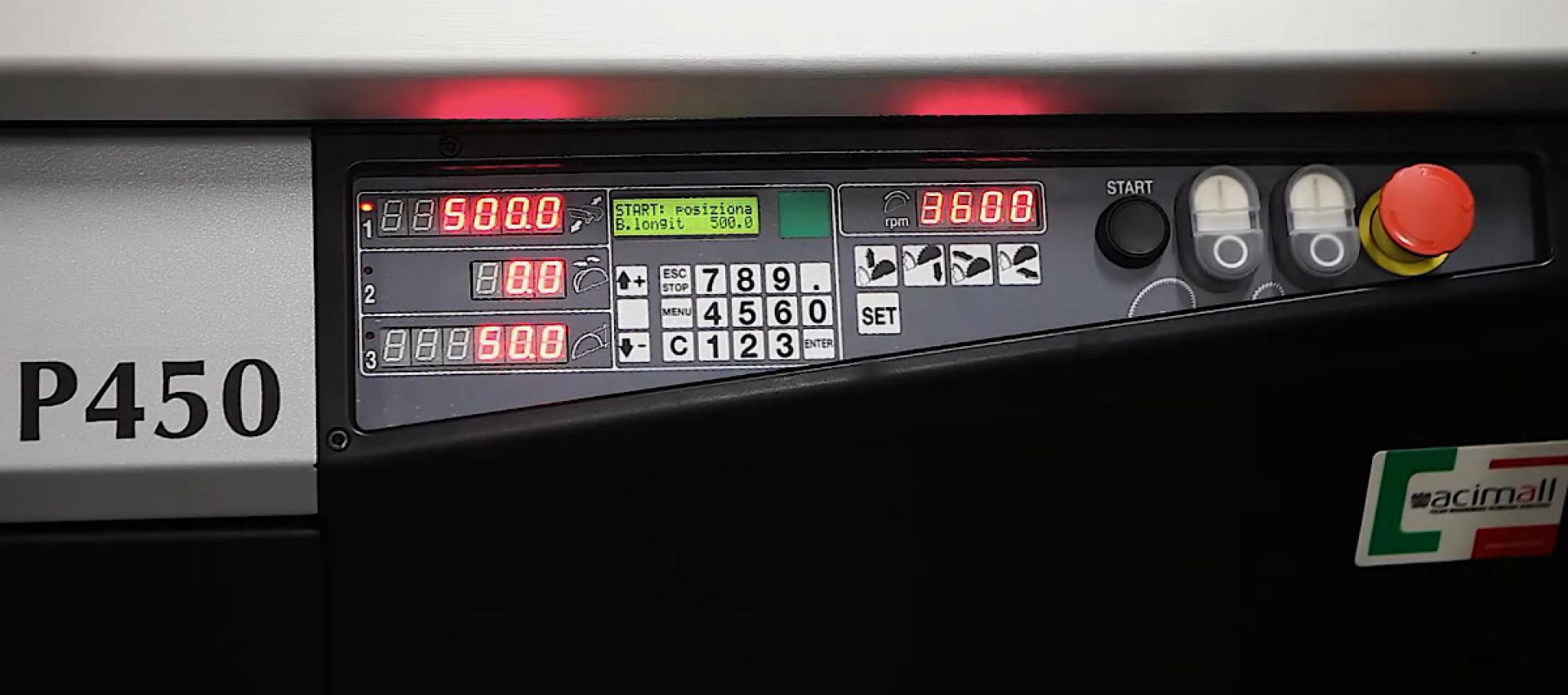

Electronic Control
The P450AX is equipped with automatic electronic adjustment for key machine functions, allowing operators to set cutting dimensions quickly and accurately.
Electronic control includes:
- Automatic blade height adjustment
- Automatic blade tilt (0°–45°)
- Electronic parallel fence positioning
- Electric scoring blade adjustment
- Programmable operating controls for repeatable production

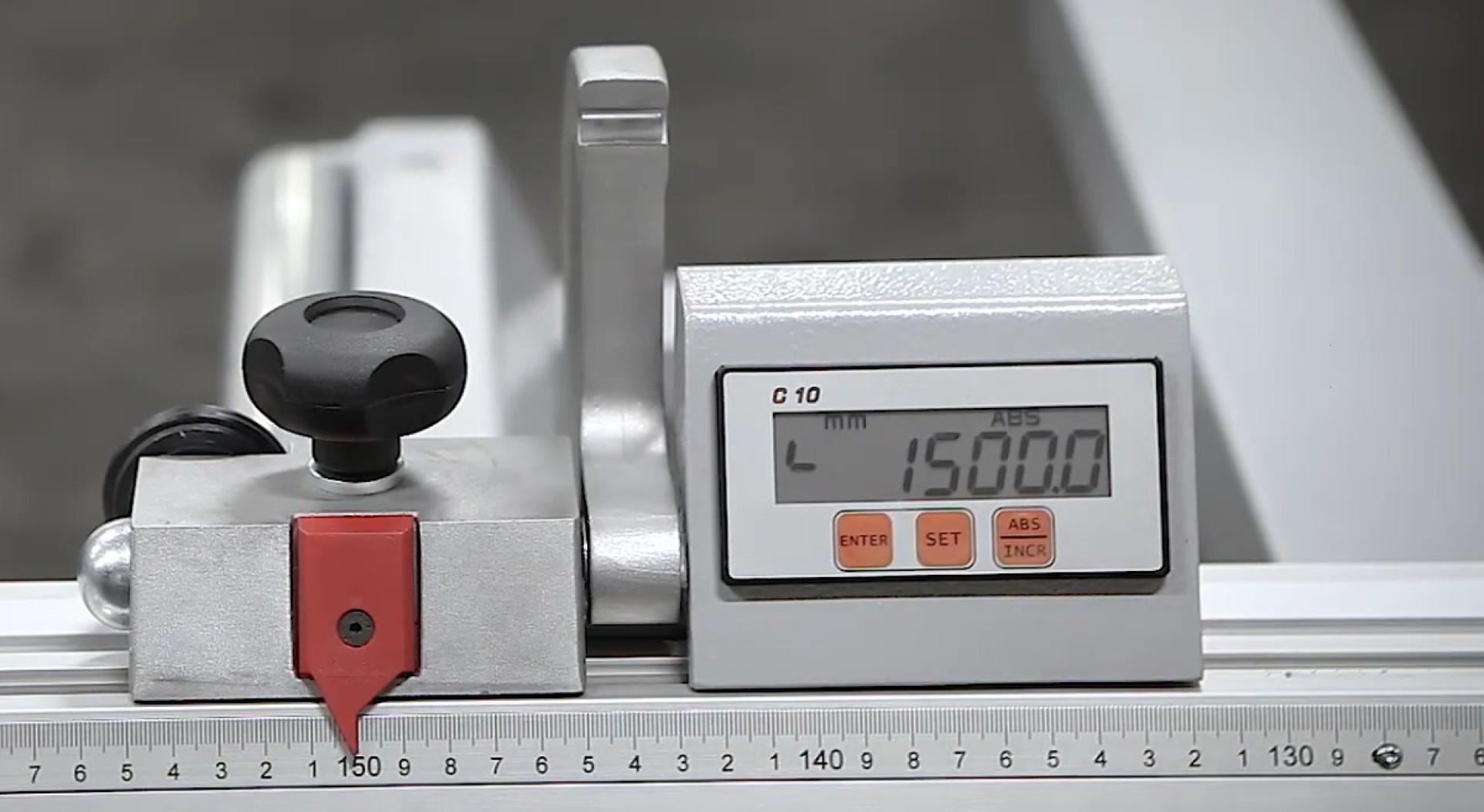

- Digital Readout on Cross Cut Fence Option included!
This automation reduces setup times, increases productivity and eliminates manual measurement errors.
Outstanding Cutting Capacity
Designed for demanding workshops, the P450AX offers impressive machining capabilities:
- Maximum blade diameter: 450 mm
- Cutting height: 155 mm at 90°
- Cutting height: 110 mm at 45°
- Rip capacity: 1300 mm
- Sliding carriage stroke: 3350 mm
- Three blade speeds: 3000 / 3600 / 4200 rpm
The integrated scoring unit ensures chip-free cutting on laminated boards and decorative panel materials for premium finished results.
Technical Specifications
| Specification | |
|---|---|
| Maximum blade diameter | 450 mm |
| Maximum cutting height (90°) | 155 mm |
| Maximum cutting height (45°) | 110 mm |
| Rip capacity | 1300 mm |
| Carriage size | 3200 × 350 mm |
| Carriage stroke | 3350 mm |
| Blade speeds | 3000 / 3600 / 4200 rpm |
| Main motor | 5.5 kW ( 7.5HP ) |
| Scoring motor | 0.75 kW ( 1 HP ) |
| Blade tilt | 0°–45° |
| Dust extraction | 120 mm / 80 mm |
| Machine weight |
Approx. 900 kg |
