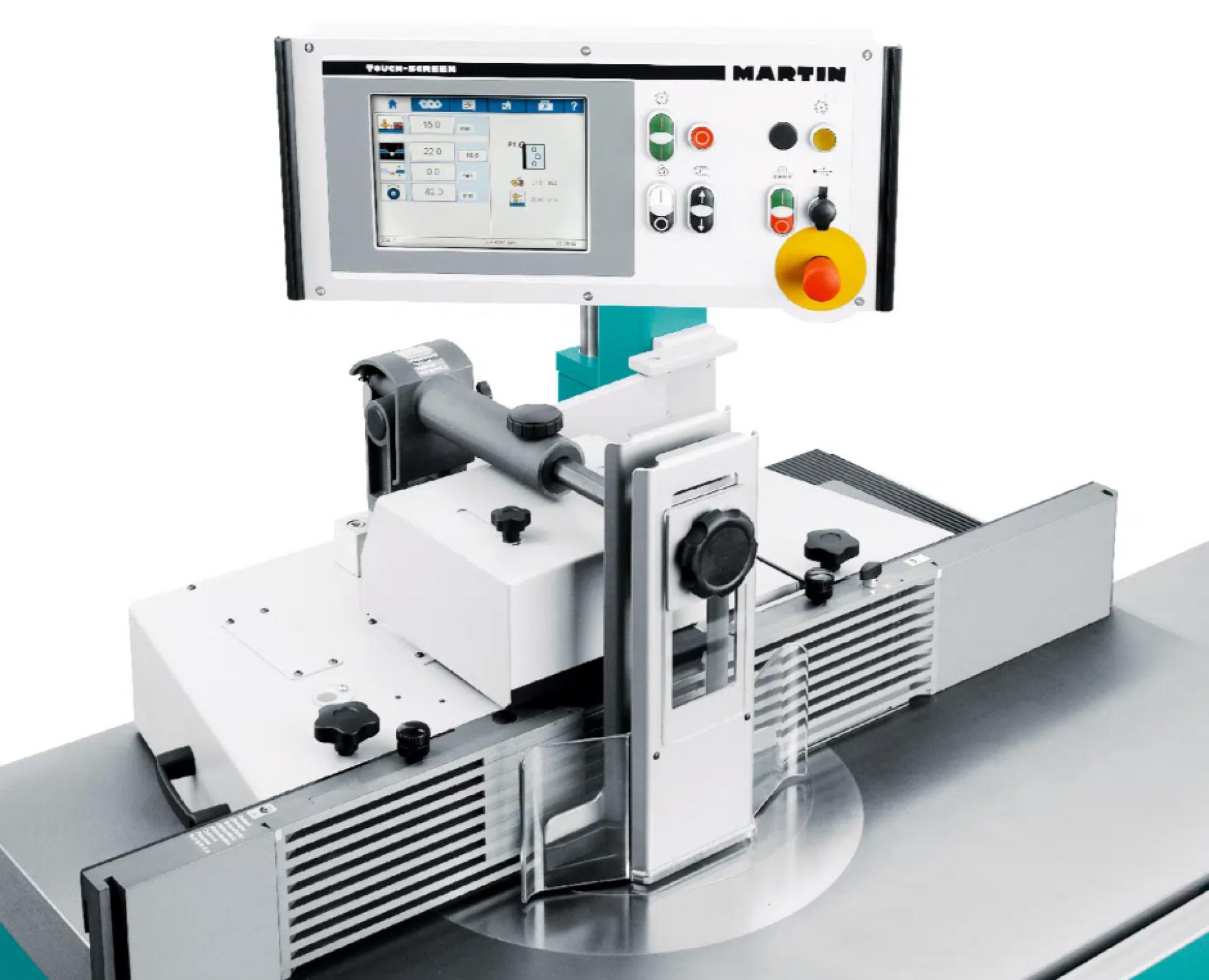

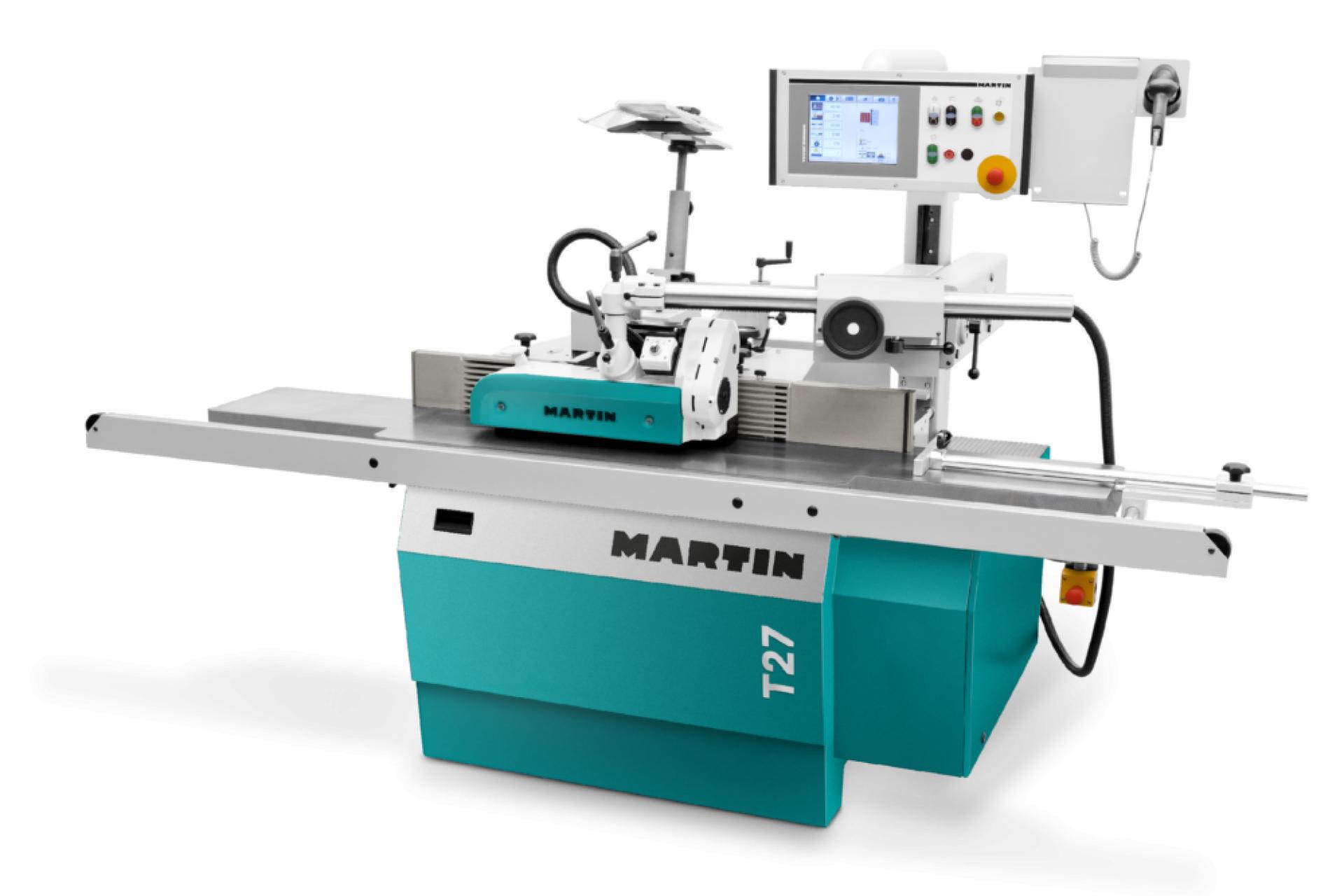

A tilting spindle moulder which brings you previously unimaginable possibilities. Setting up a spindle moulder is normally a big challenge. Not on the T27 Flex thanks to its modern touchscreen control: Through the integrated tool conversion you can also setup complex moulding patterns with tilted spindles in a instant. Only this enables the large tilting range of 2 x 46° to be used efficiently – and you can do it fully and completely to your inclinations. In addition the machine can be very precisely coordinated to your individual requirements in operation. New Martin T27 Spindle Moulder Tech Spec --Motor Power 7.5 kw / 10hp -Control 10.4" Colour Touchscreen* -Control Panel at eye level, inclined, 2x rotation -Spindle Stroke 150mm; repetition accuracy of ± 0.025 mm; -Spindle Pivot at 90° and tilting +46° / -46° -Rotational Speeds range from 3,000 to 12,000 rpm -Cutter arbor quick-change system HSK -Table Opening 255 / 205 / 161 / 106 / 74 mm -Main fence Adjustable in one-hand operation according to digital display integrated in control by means of handwheel -approx. 950 - 1200 kg Optional- -Motor Power 11 kW / 15hp* -Fence Jaws Clamping System AutoLock* -MOTORISED FENCE POSITIONING via control instead of adjustment with handwheel, full integration of fence (without fence jaw right) in the control and program memory; repetition accuracy ± 0.025 mm* -Spindle Stroke 125mm with 7.5 / 9.5 kW Motor* -Sliding table with 1400 mm operating range* -Sliding table for slight tenoning and mortising operations* -Table extensions, both sides, extendable support 3000 mm* -Fully programmable Martin Spindle Moulder- Since over 100 years Made in Germany. By Martin
