Prodeco Model E55 Briquetting Machine
Efficiently Turn Your Workshop Waste into Profitable Fuel
Ideal for joinery workshops with high volumes of wood waste, the Prodeco Model E55 Briquetter compresses sawdust, chippings, and other residues into dense, high-quality briquettes. These briquettes are not only easy to store and transport but can be sold or used directly with industrial woodburners—significantly reducing skip hire costs.
✅ Transform Waste Into Fuel – Efficiently & Cleanly
With its robust construction, double manometer for vice pressure control, and powerful hydraulic system, the E55 delivers consistent performance and solid briquettes—improving the cleanliness, efficiency, and sustainability of your workshop.
🔧 Technical Specifications
-
Hydraulic System
-
Briquette Diameter: 55 mm
-
Briquette Length: 40 mm to 70 mm
-
Output: Up to 60 kg per hour
-

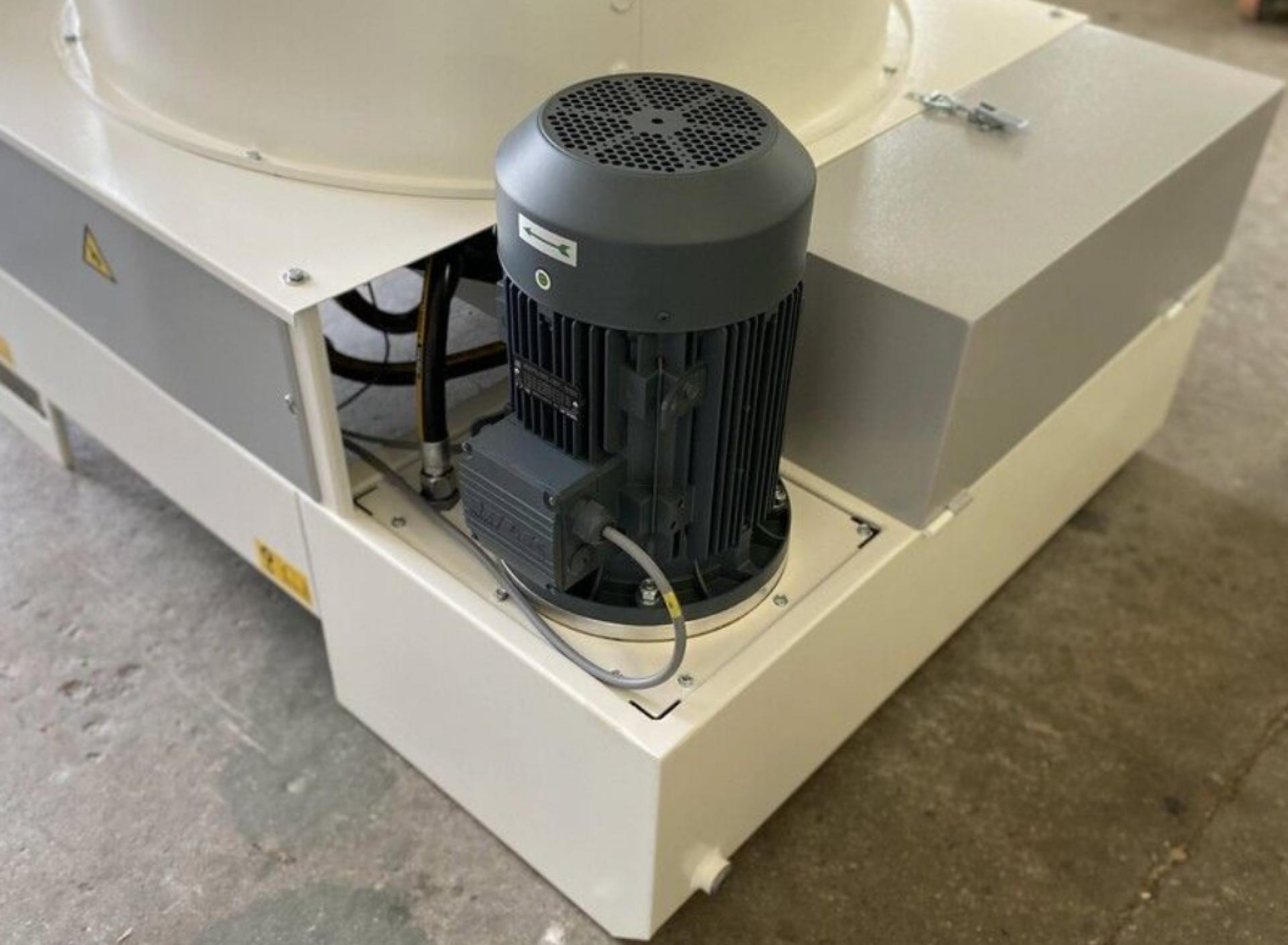

Motor Power: 5.5 kW
-
Drum Diameter: Approx. 1,000 mm
-
Cycles per Minute: 7
-
Number of Cylinders: 3
-
Vice: 1 unit
-
Voltage: 400V / 50Hz
-
Machine Weight: Approx. 600 kg
-
Dimensions (HxLxD): 1510 x 1700 x 1170 mm
-
Viewing Window in Hopper
-
Load Level Detection Sensor
-
Timed Pre-Heating Device (for cold climates)
-
Oil Level Sensor
-
SIEMENS PLC Touchscreen Control Panel
-
Inductive Limit Switches
-
Includes: Use & Maintenance Manual, Service Keys
Built to CE Standards
⭐ Optional Features (Available Upon Request)
-
Cooling device for extended operation
-
Automatic bagging carousel
-
Refiner for breaking down larger chippings
-
Additional hopper
-
Compatible with your existing dust extraction system
🛠 Support & Service
As the Main UK Dealer for Prodeco, W.S Wood Machinery offers:
-
Expert installation and technical support
-
Wide UK delivery
-
A large inventory of new and used woodworking machines
-
Special quote-matching offers
-
80+ machines in stock, with new items arriving weekly
📞 Contact Us Today for Pricing & Offers
-
London: 07867 950 153
-
Glasgow: 01236 432 700
📍 W.S Wood Machinery – UK Prodeco Main Dealer
Call us now at 01236 432 700 or Challenge us to beat your best quote!
🌍 About Prodeco S.r.l.
Founded in 2004 in Italy, Prodeco S.r.l. specializes in machinery for processing and optimizing waste materials—including briquetters, grinders, compactors, and dust extraction systems. Proudly Made in Italy and trusted across Europe.
