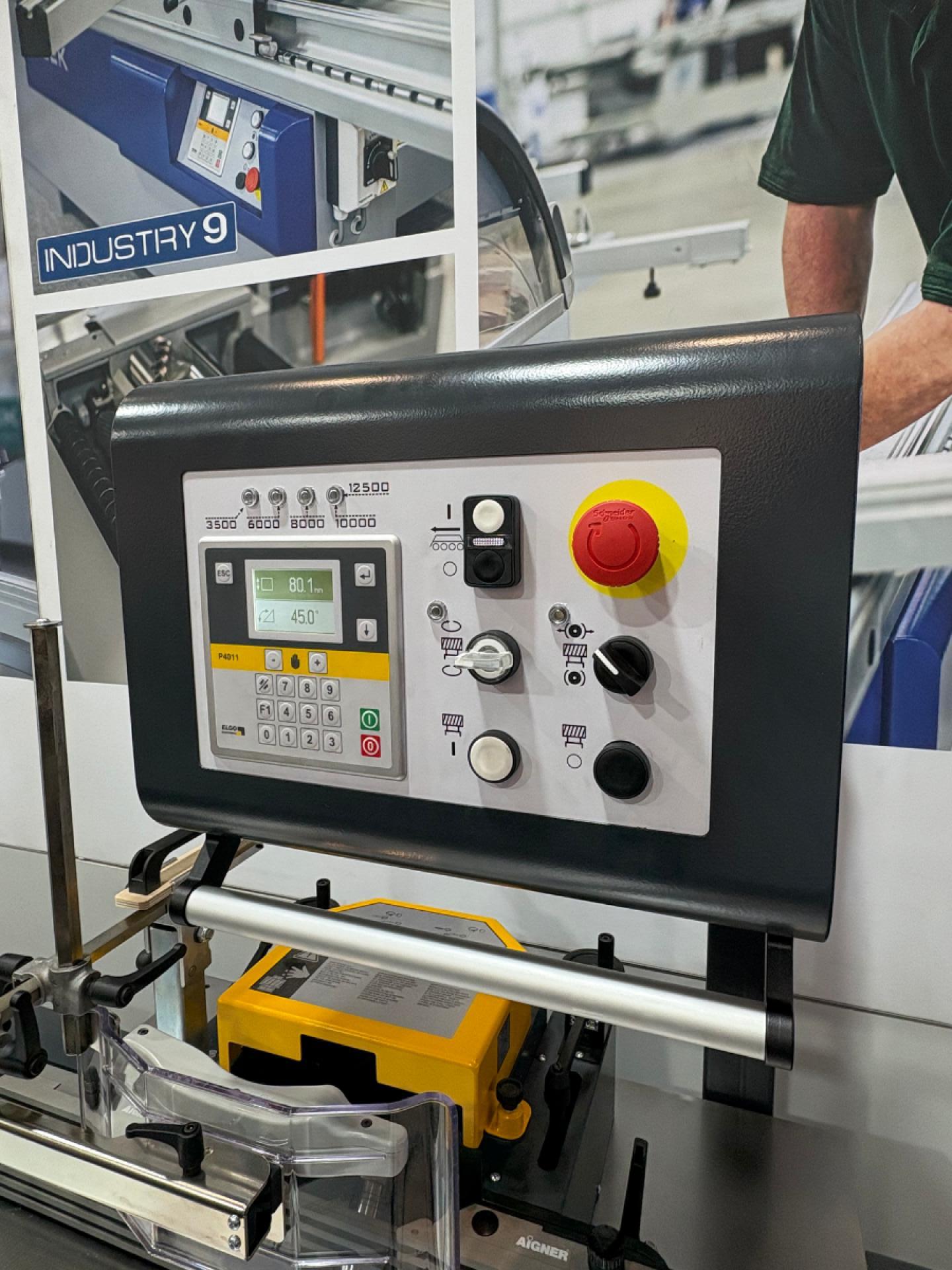

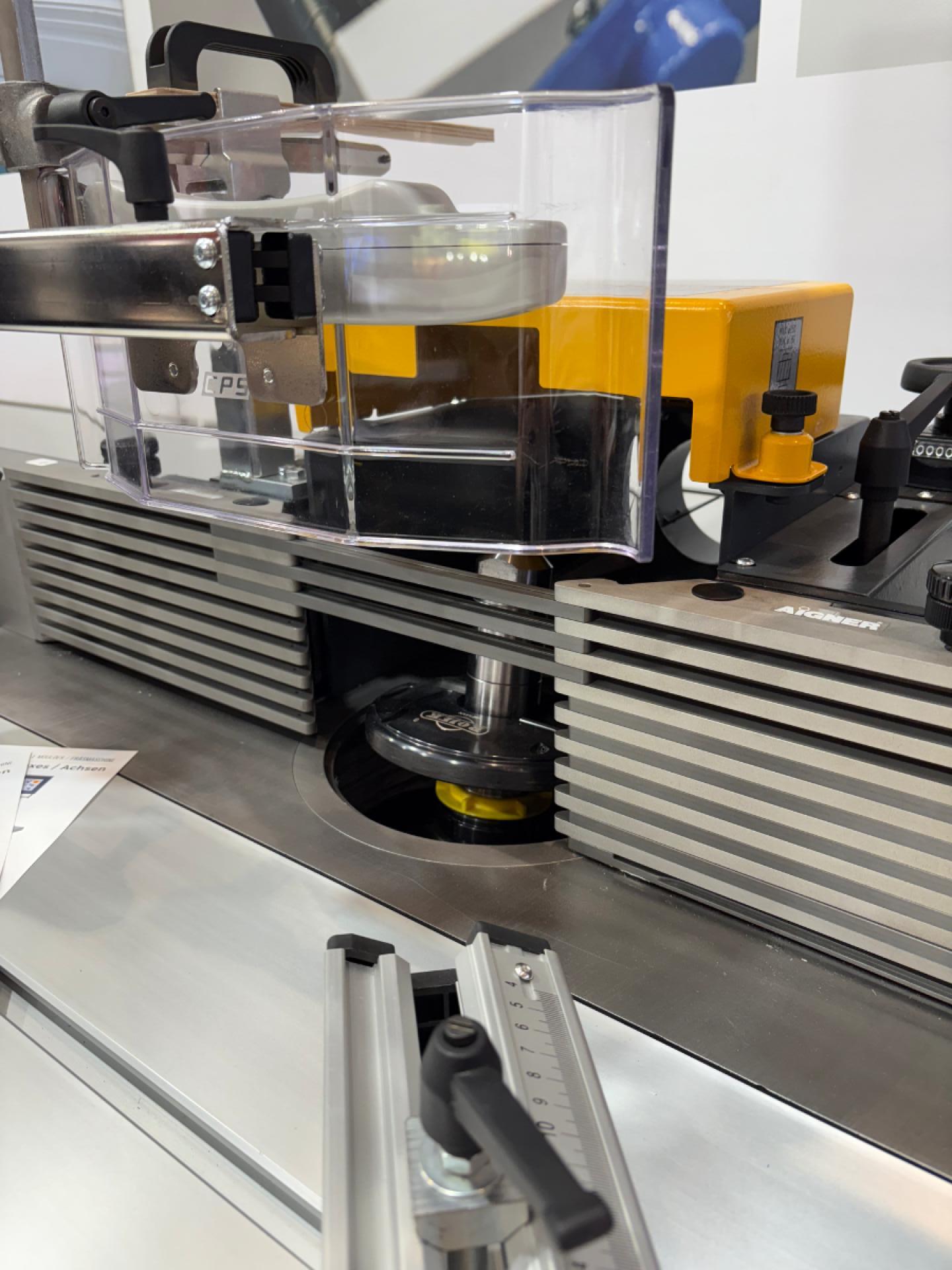

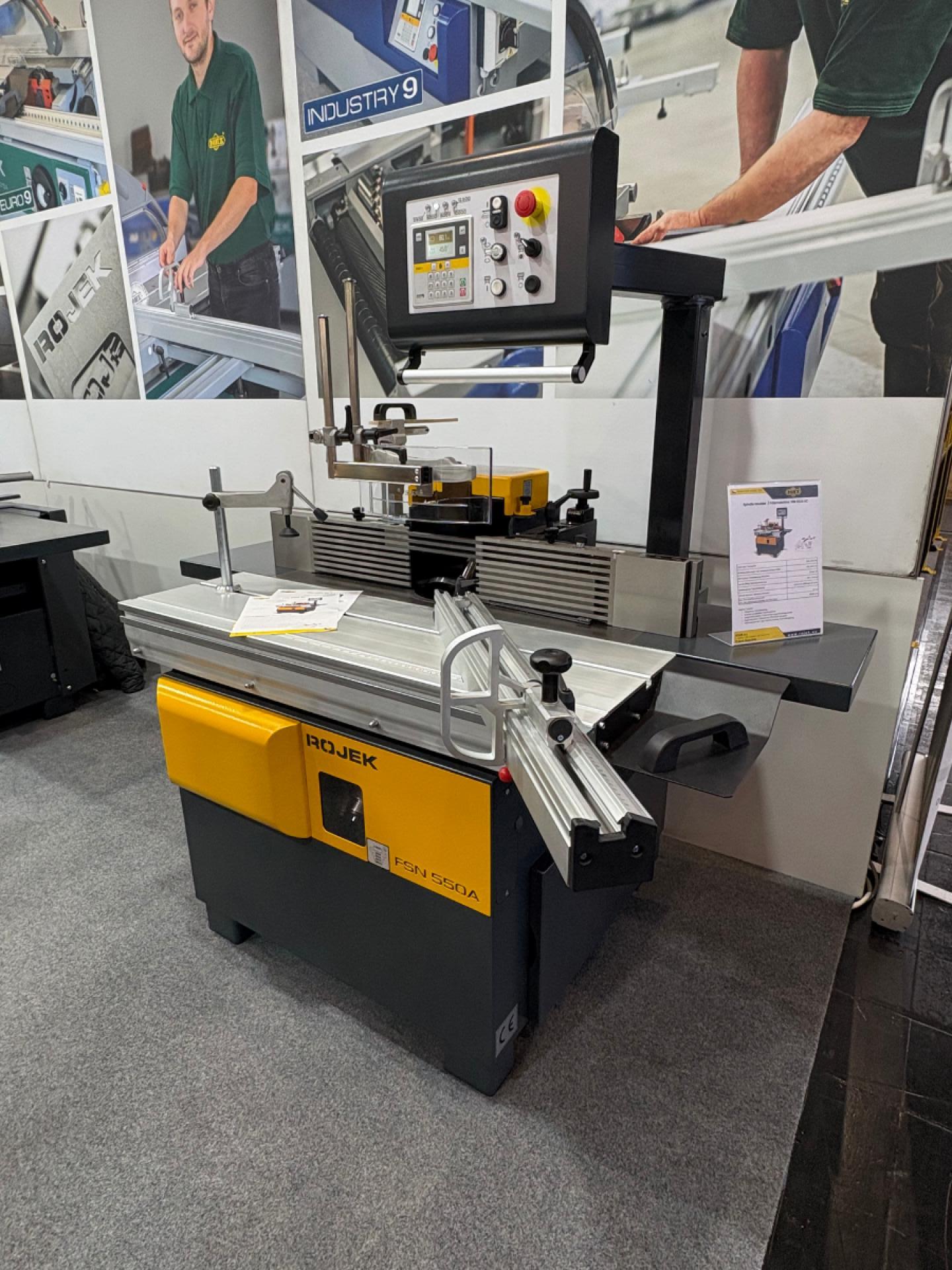

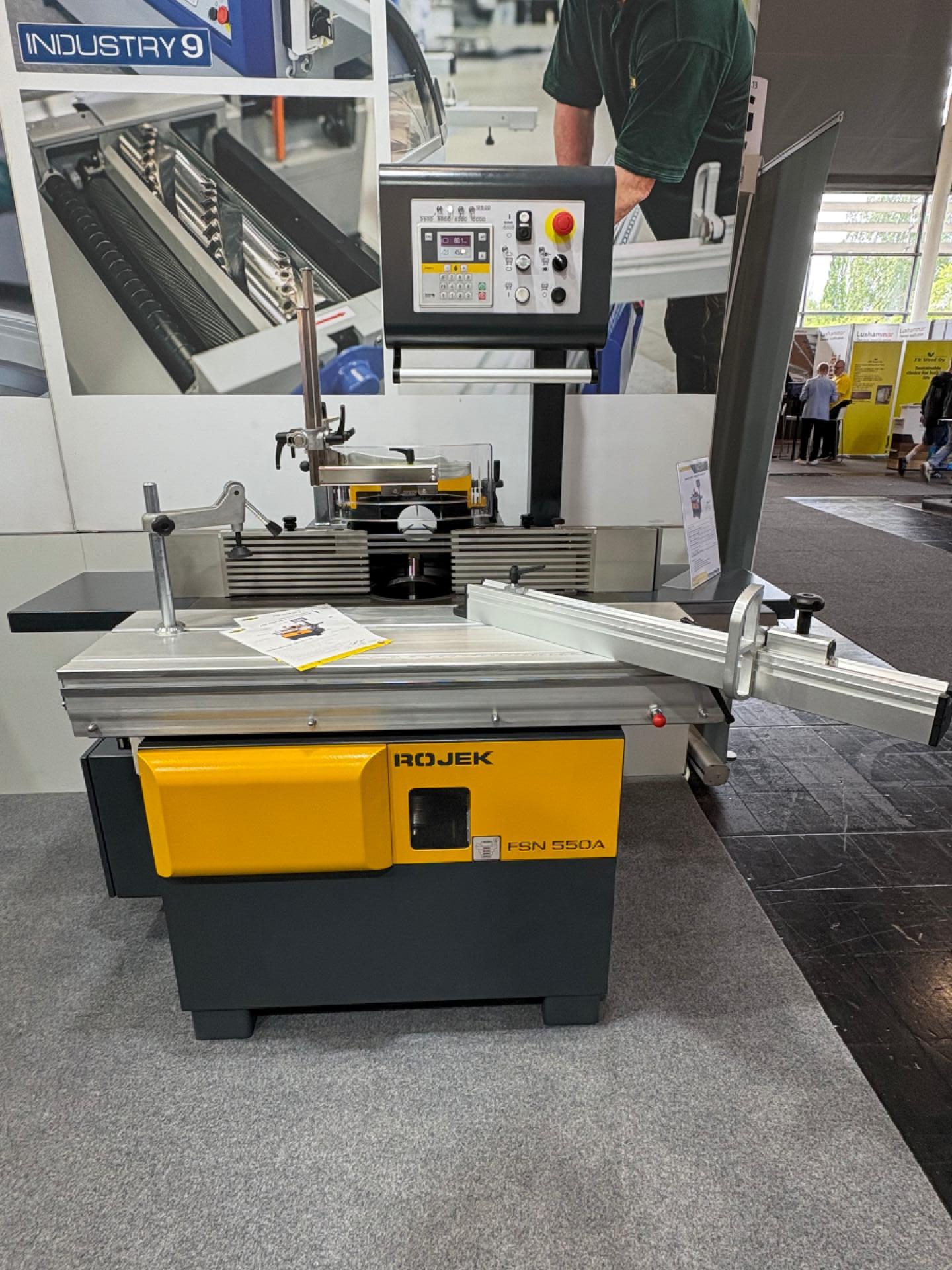

New Rojek FSN 550A Motorised 2 Axis Spindle Moulder - For Sale WS Woodmachinery. + Precision and Quality: Ensures high precision and superior wood processing quality. + Robust and Durable: Designed for longevity and resilience, suitable for intensive industrial use. + Ease of Use: Simple operation and low maintenance needs enhance productivity. The design of this machine went through a lot of technical innovations which increased the useful featurettes of the machine. Quality processing ranks this spindle moulder among the best in its class. It is especially popular among smaller and middle-sized producers. It is equipped with a sliding table with very precise and solid mounting on steel round bars CV 360T in basic version. The spindle mounting in a robust tilting cast iron body guarantees accuracy, solidity, and reliability. New Rojek FSN 550A Spindle Moulder Tech Spec -Motor Power 5,3 kW - NEW NC CONTROL 2 AXIS (up and down + Tilt 45 degrees) -Motor speed 2 900/ min. -Spindle diameter 30 mm (32 |35 | 40 | 50 ) mm -Spindle speed 3 500; 6 000; 8 000; 10 000 (12 500)/min. -Max. spindle stroke 142 mm -Spindle length 140 mm (180 | 220) -Spindle tilt -5° · +45° (Motorised) - Max. tool diameter under the table 250 mm -Max./min. tool diameter for profiling 250 / 80 mm -Max./min. tool diameter for tenoning 275 / 80 mm -Dimensions 1360 mm x 2 160 mm x 1 050 mm -Table dimension 1 000 x 520 mm -Feeder device -MORI support cover and wooden rulers -clamp for formatting table - single column eccentric -900 mm short angle ruler with stop -CV 360T/ 1.2 m (2 ft) formatting table on hardened rods - Motorised tilt and rise and fall -Tenoning hood included to suit larger tools and Tenoning plate Optional*- - CV 360T/ 2 m formatting trolley on hardened rods -Extension of the sliding table with a support frame 870 x 630 mm -Side extensions left and right -Motor 7,5 kW/S6 -electronic speed indication (only with 7,5 kW/S6 engine) -Replaceable spindle including mandrel diameter 30 mm, clamping height 130 mm and many more... QUICK DELIVERY! Rojek was founded in 1921. Rojek have been supporting craftsmanship and artisans for 102 years. We understand their needs and produce timeless products for them that are passed down from generation to generation. Rojek are a stable Czech manufacturer that ranks among the world leaders in its field. New Spindle Moulder for Sale - WS Woodmachinery.
