New Salvamac Combo 400 Cross Cut System

Salvamac Combo 400

Compact. Simple. Robust.

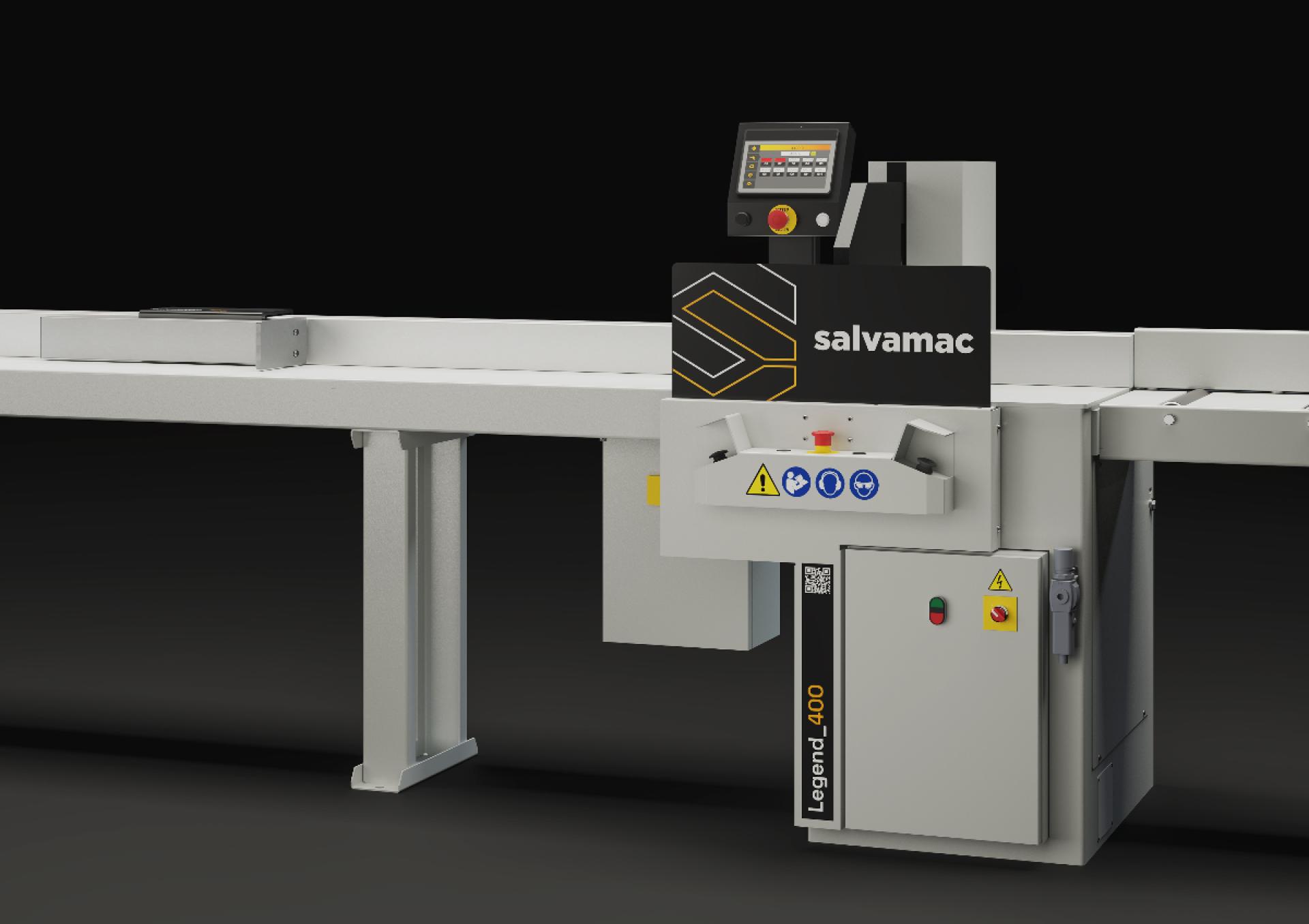

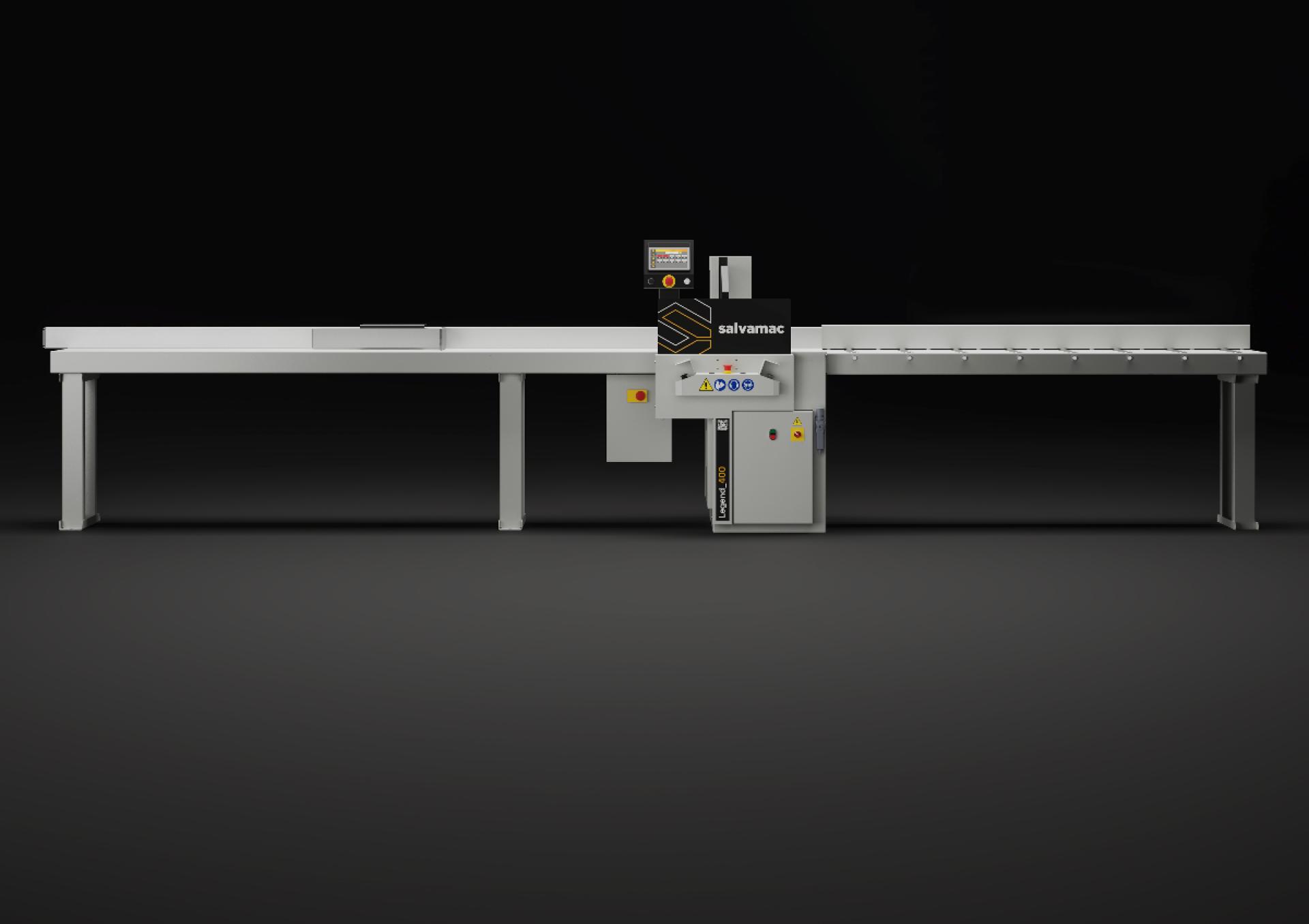

The Salvamac Combo 400 combines the Legend_400 crosscut saw with the SalvaStop 100 CNC length stop/pusher, creating a safe, accurate, and efficient crosscutting system for workshops and production lines.

The 3 S’s of Cutting

Solid – rigid steel construction with anchoring points

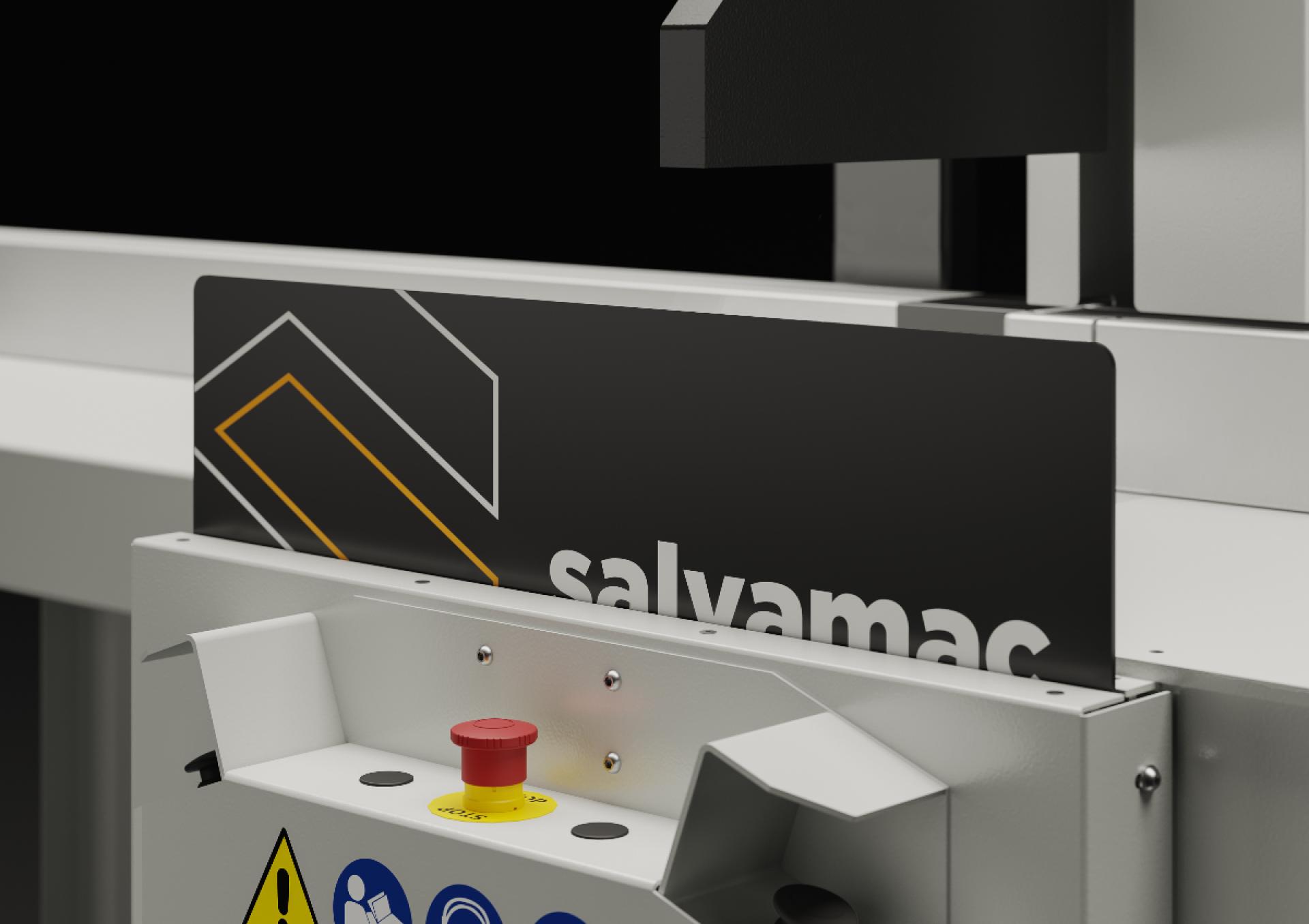

Safe – two-handed operation, protected blade area, pneumatic pressor hood
Simple – intuitive controls, quick setup, minimal maintenance

Key Features

Legend_400 crosscut saw with 400 mm HM blade (Z=96)
SalvaStop 100 CNC pusher/stop with 7” S-PAD touchscreen
Independent pneumatic controls and soft blade inserts
Amortising system reducing wear and noise
CE-compliant when installed with proper infeed/outfeed tables

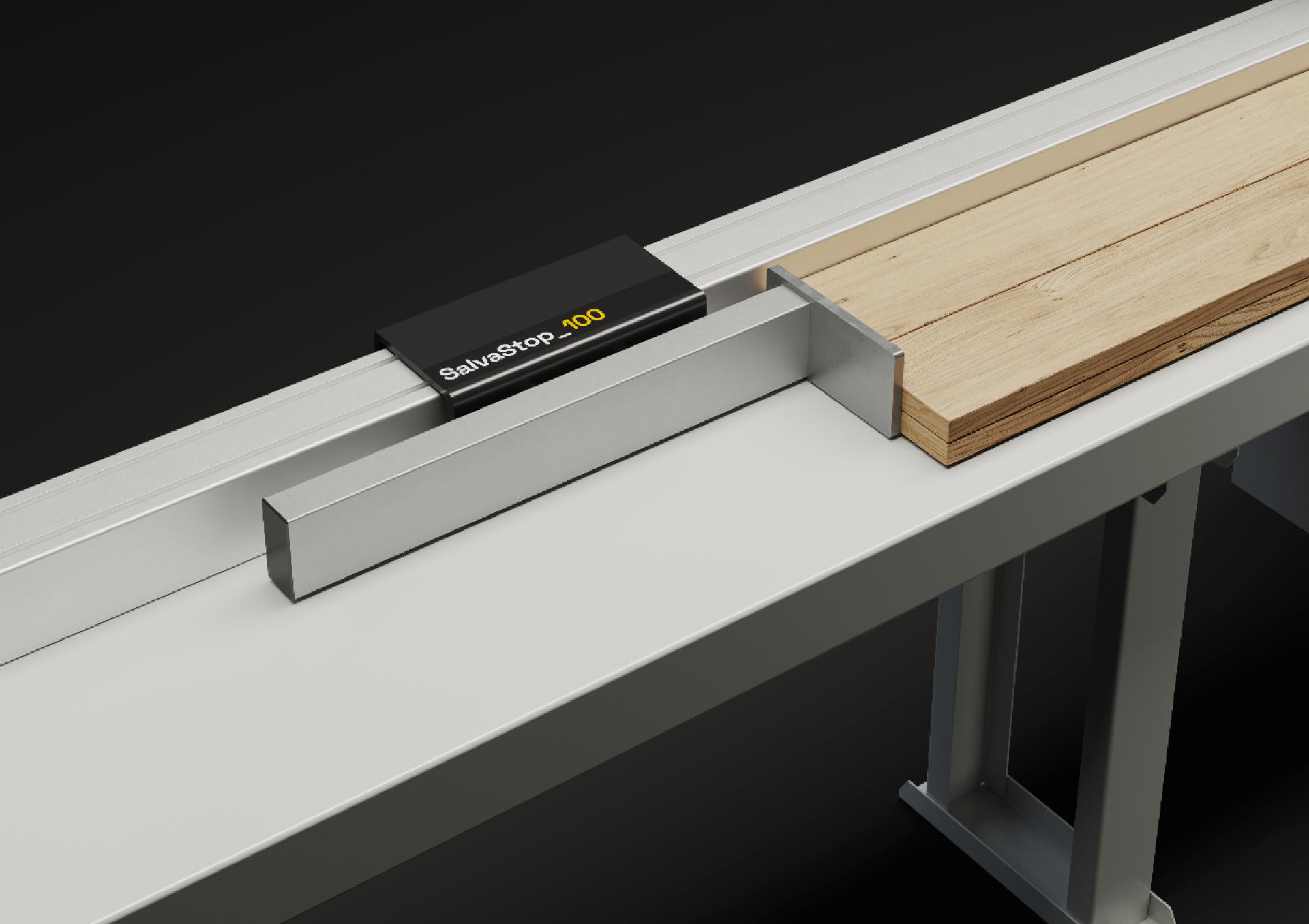

SalvaStop 100 — Automatic Stop & Pusher

Eliminates manual measuring, improving accuracy and reducing operator workload.

Highlights

Reinforced 100×100 mm aluminium beam (200mm Wide Plate)
Positioning speed up to 60 m/min
High-precision toothed-belt transmission
11 Nm closed-loop servomotor

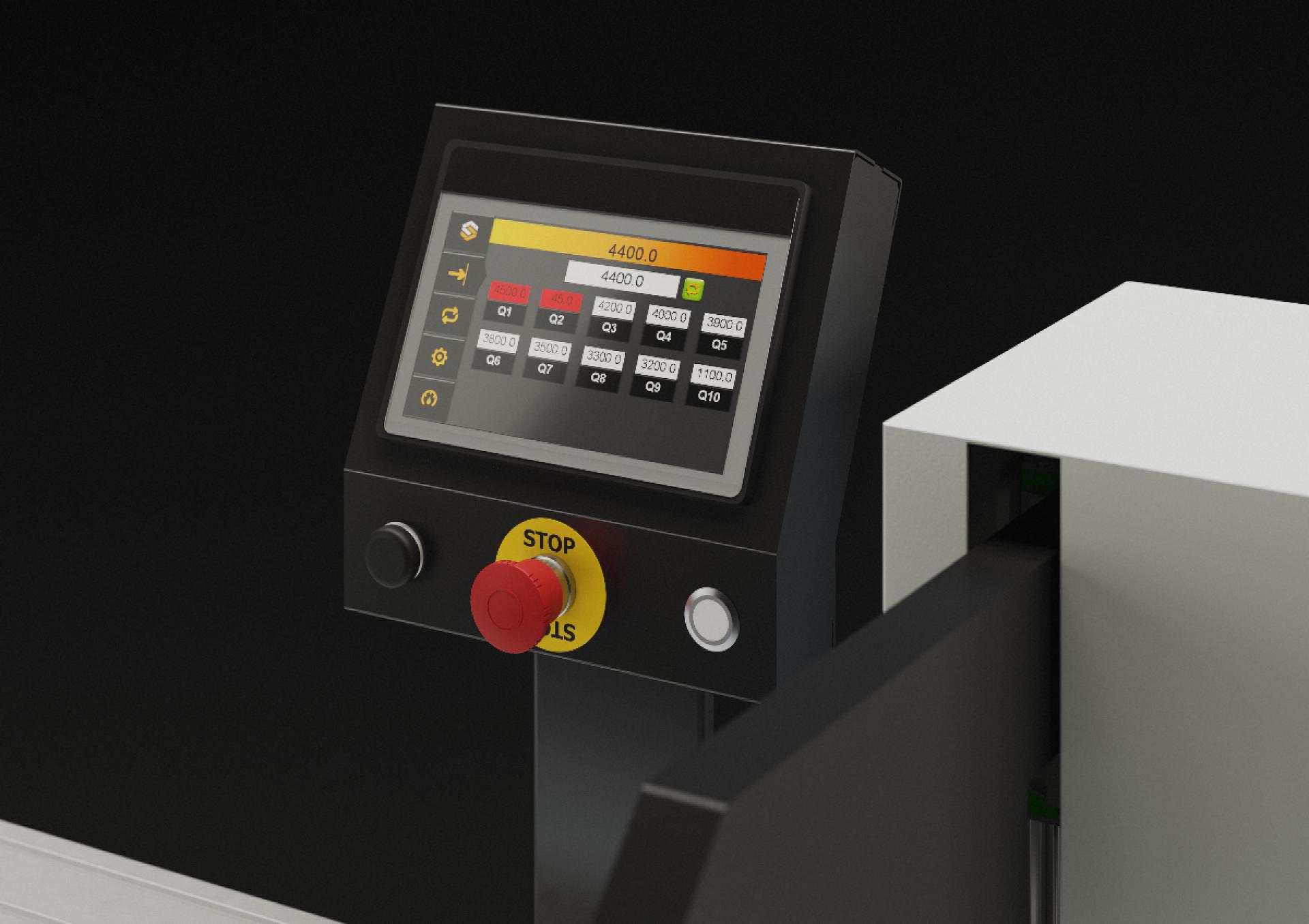

7” touch screen with USB port
STOP mode for single lengths
PUSH mode for cutting lists (up to 100 positions)

Technical Specifications (Selected)

Motor: 3.0 kW
Blade: 400 mm diameter, HM (Z=96)
Rotation speed: 2,800 rpm
Max cutting section: 220×80 mm (or 250×50 mm)
Bundle cutting height: up to 100 mm
Air consumption: 5 Nl per cycle
Extraction: Ø120 mm / Ø100 mm
Air supply: 6–8 bar
Voltage: 400 V, 50 Hz, 3-phase
Working height: 900 mm ± 20 mm
Roller table capacity: up to 80 kg
Servo motor: 11 Nm

Available Options

Multiple roller table lengths and configurations
Right-hand SalvaStop installation
Up/down mobile front guard
Pneumatic alignment devices (left or right)
CSV file import
Laser cutting line
Label printer and barcode scanner integration
Larger screen upgrade
“Black Edition” finish (RAL 9005)
