Salvamac Combo 550 — Crosscut Saw + SalvaStop System

Power • Accuracy • Productivity

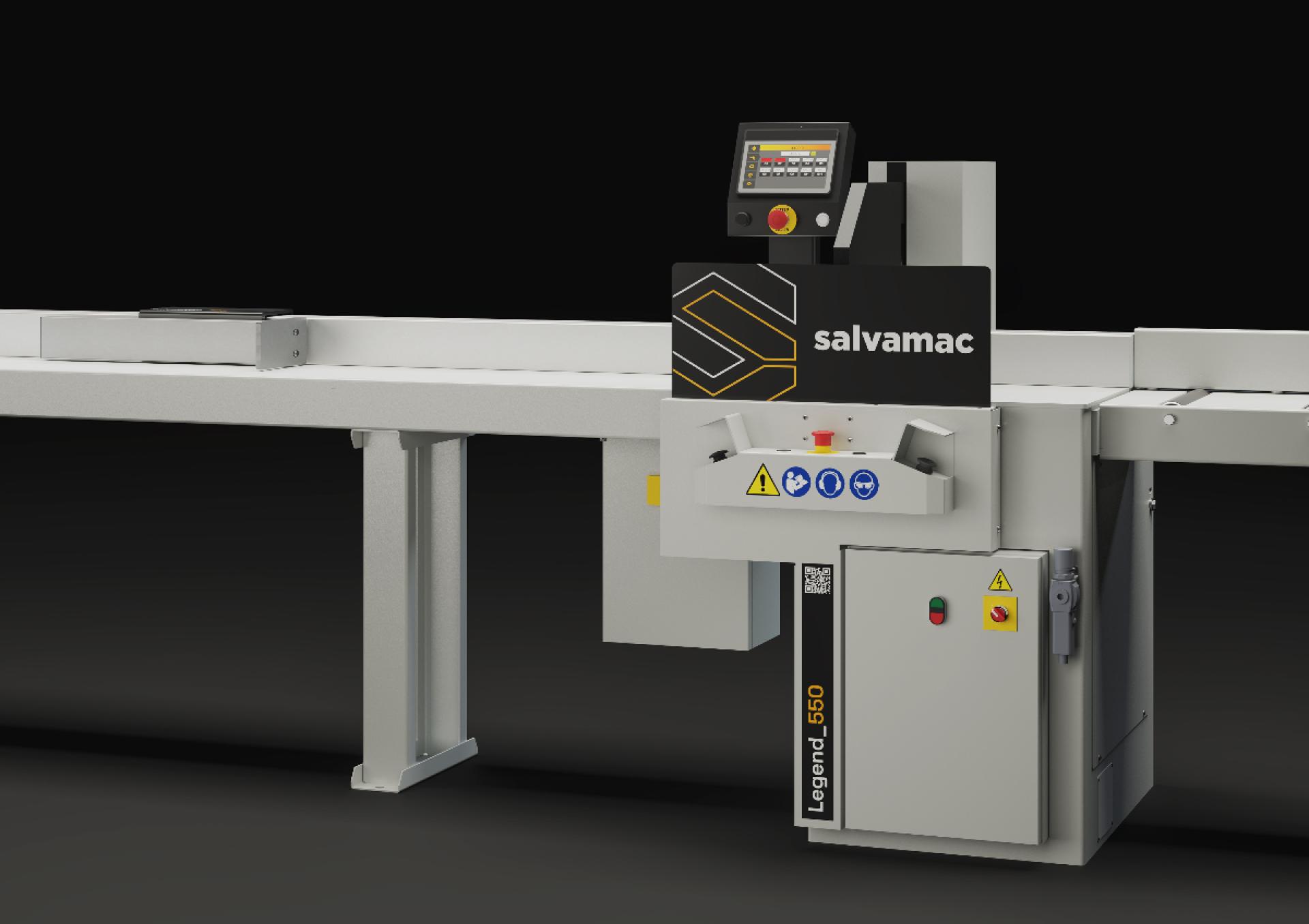

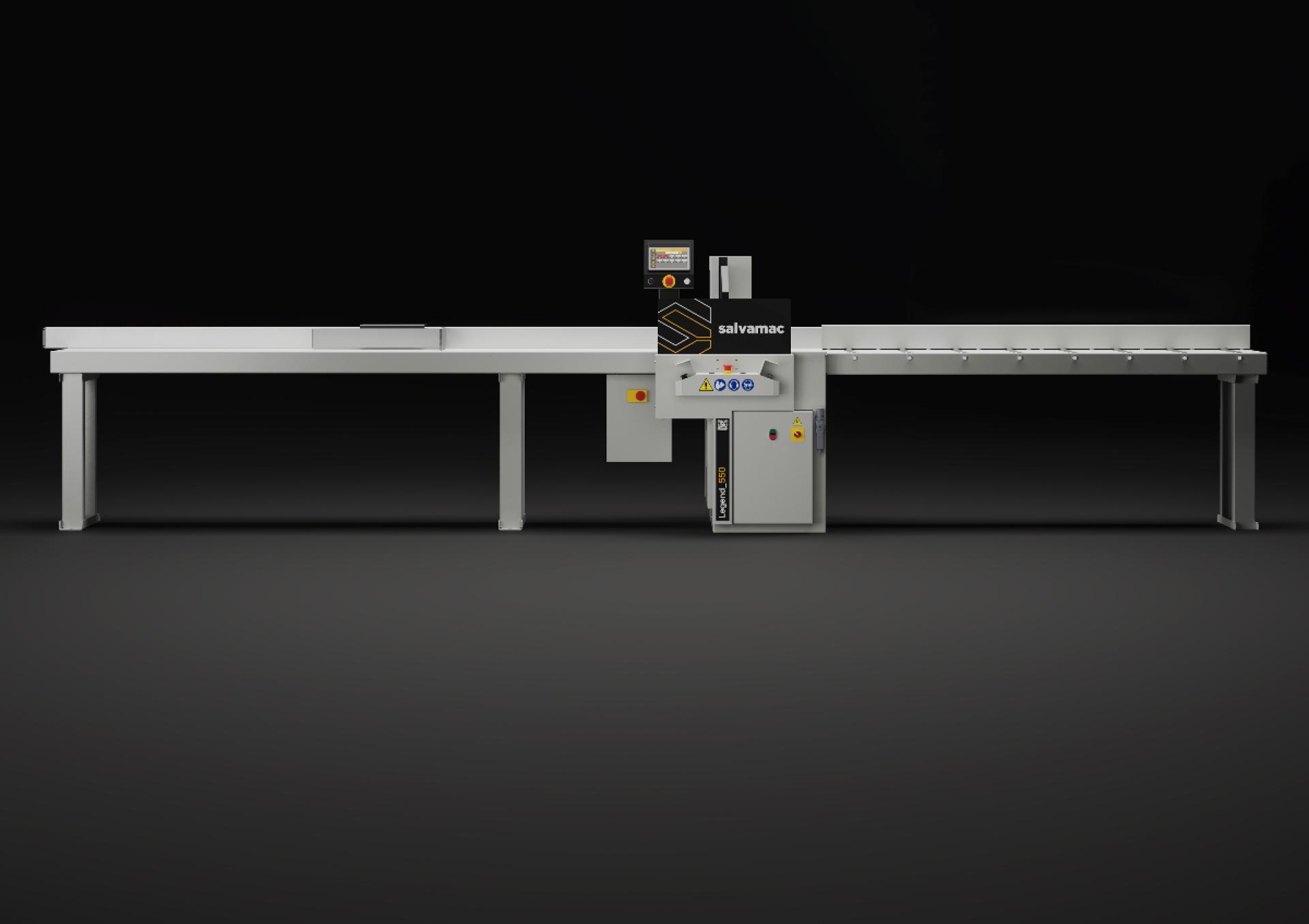

The Salvamac Combo 550 combines the heavy-duty Salvamac Legend 550 crosscut saw with the high-accuracy SalvaStop automatic length-stop system. Designed for joinery and production environments, it delivers safe, fast and repeatable cutting with minimal operator effort.



Why Choose the Combo 550

• Industrial-grade build
  Reinforced steel structure for maximum stability and durability, even under continuous use.

• Powerful cutting performance
  550 mm blade powered by a 7.5 kW motor ensures smooth and reliable cutting across a wide range of timber sections.

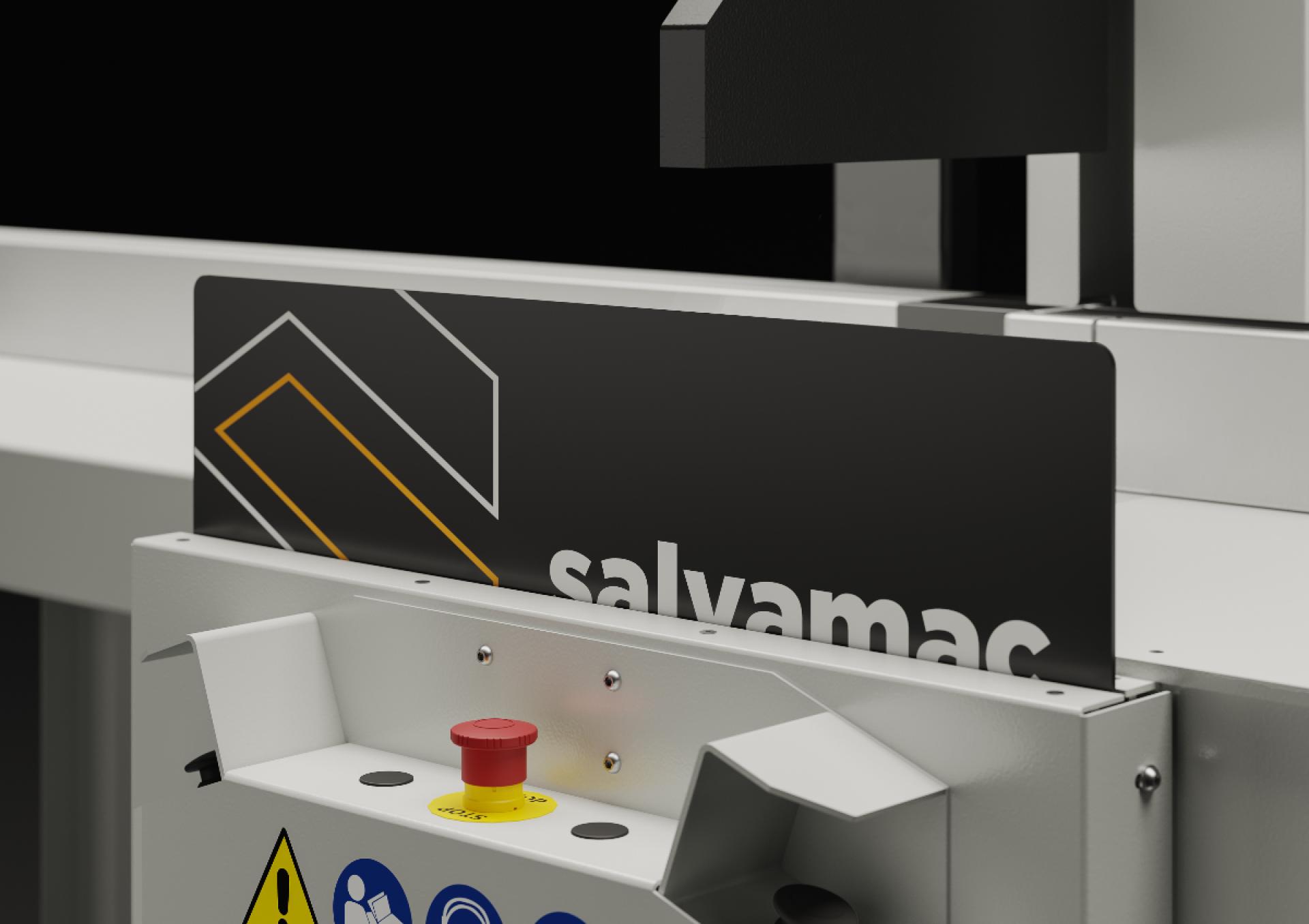

• Safe & ergonomic operation
  Two-hand safety controls with a fully protected cutting area keep the operator safe while maintaining fast workflow.

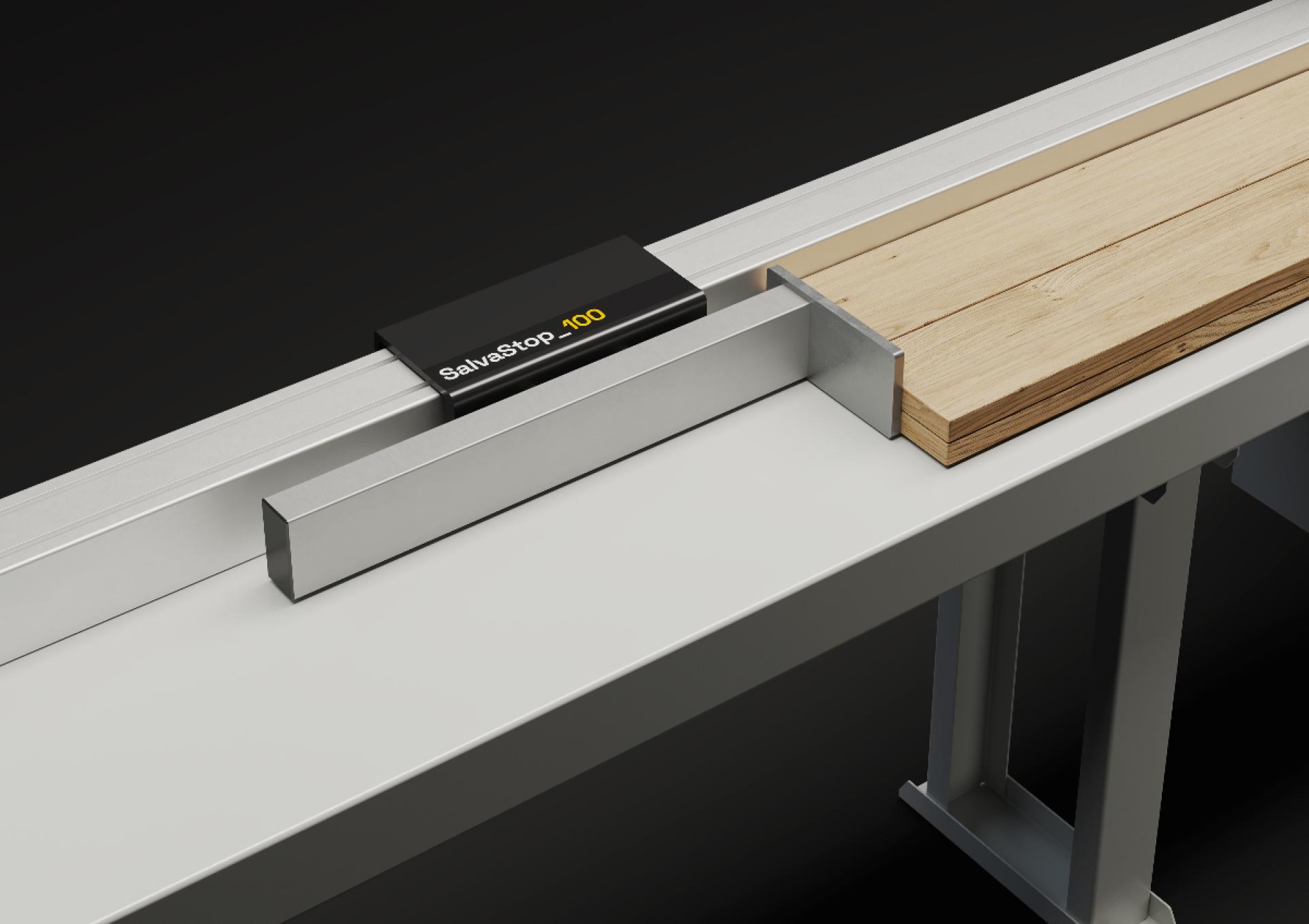

• Precision automation with SalvaStop
  The electronic length-stop / pusher system eliminates manual measuring, improves accuracy, reduces waste and speeds up repeat cuts.

• Simple to use

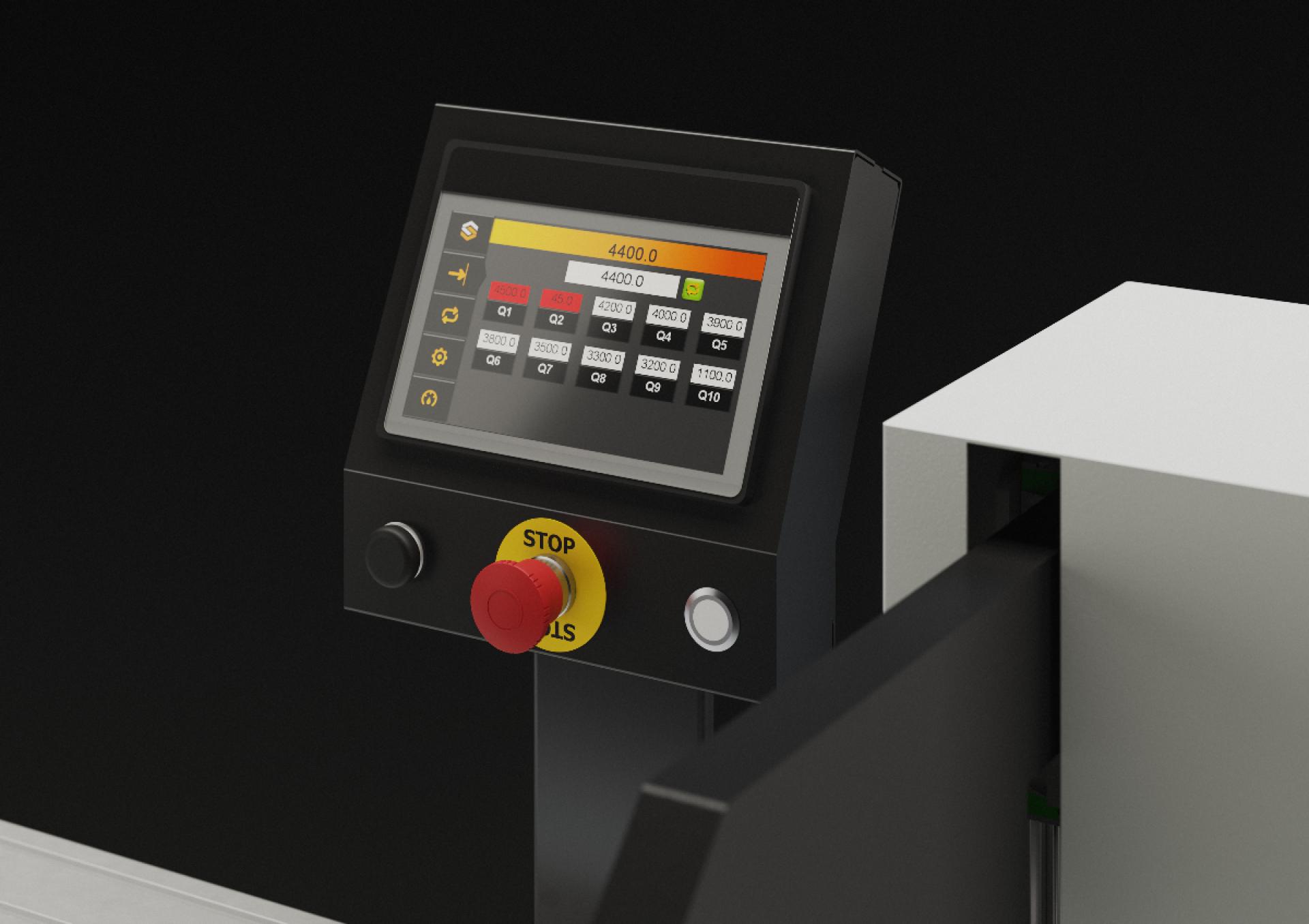

  User-friendly controls and intuitive programming make it ideal for both skilled operators and general workshop staff.



Available Configuration Options

• SalvaStop Length Options:
  Choose from a range of working lengths to suit your workshop layout and production needs.

• Roller Table Options:
  Multiple roller table lengths available for infeed and outfeed setups.

• Additional Customisation Options:

  • Alternative blade specifications

  • Extended cutting width packages

  • Integration into existing production lines



Technical Specification (Legend 550 / Combo 550)

Parameter	Value / Options
Blade motor power	7.5 kW
Blade diameter	550 mm
Saw spindle speed	2,800 rpm
Air consumption (per cycle)	7 Nl
Compressed air supply pressure	6–8 bar
Dust extraction ports	1 × 120 mm / 1 × 100 mm suction ports
Working/table height	900 mm ± 20 mm
Maximum cutting Thickness	150mm High (220 Wide)
Maximum cutting Width	330mm  (50mm High)
Supported configuration options	Variety of outfeed tables ( rollers) optional extras (e.g. front-guard modifications, laser cutting line marker)



Get a Quote / Configure Your Machine

We can supply the Combo 500 configured to your workshop needs — from cutting section size to infeed/outfeed tables and stop-system setup. Contact our team to discuss your requirements and receive a tailored quotation.
