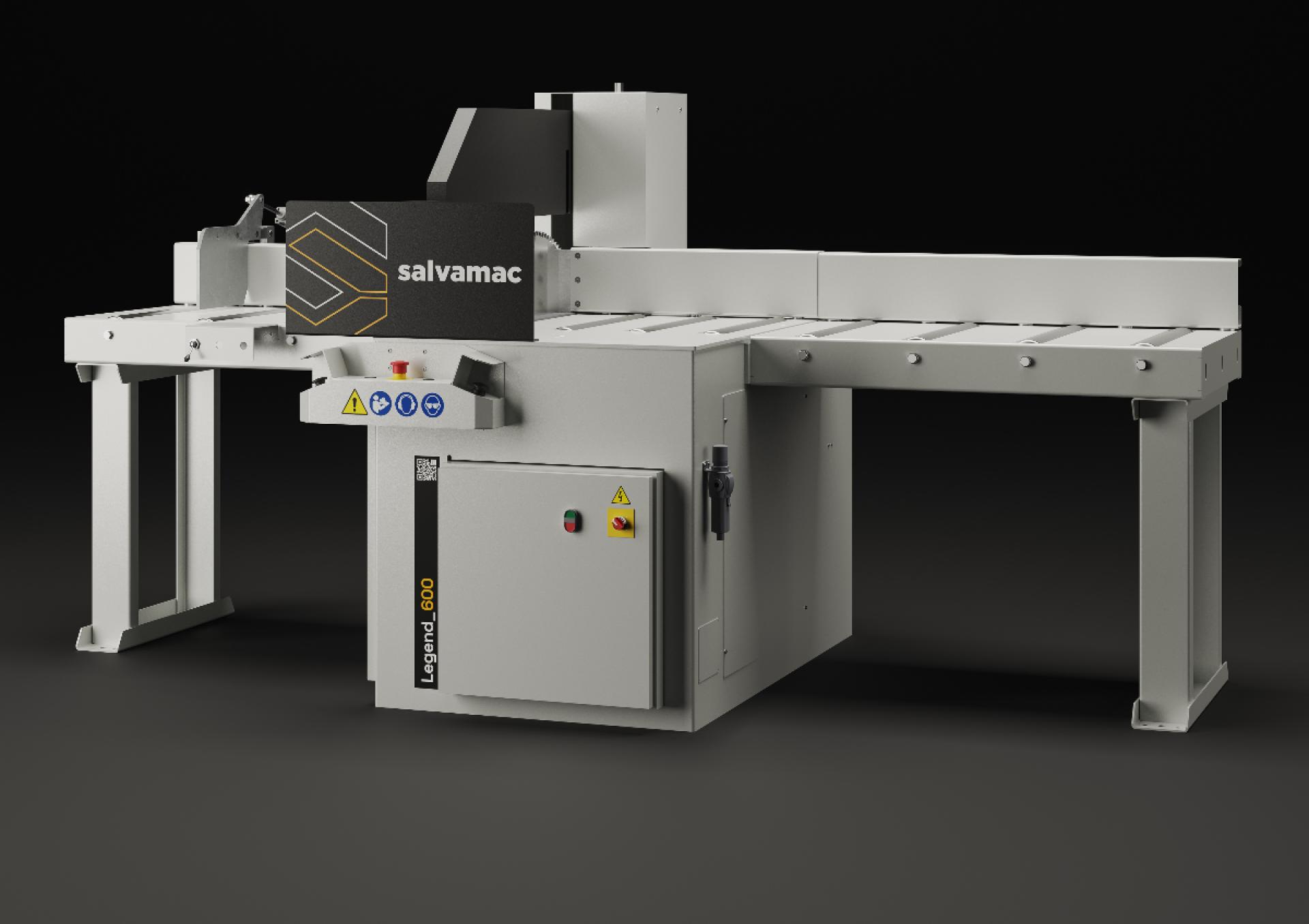

Legend 600 — Semi-automatic Cross-Cut Saw

Accuracy. Power. Performance.

The Legend 600 is a high-performance, semi-automatic cross-cut saw purpose-built to deliver fast, safe, and high-quality cuts — even on large and heavy timber pieces. It’s engineered for serious woodworking.



Key Features

• Robust Construction: Built on a reinforced, thick-walled steel frame, the Legend 600 ensures long-term durability and stability.

• High Power Motor: Equipped with a 9.2 kW motor running at 2,750 rpm — ideal for tackling demanding cross-cutting tasks with consistent performance.

• Large Cutting Capacity:

  • Maximum thickness: 150 mm.

  • Maximum width: 610 mm.

  • Blade diameter: 600 mm.

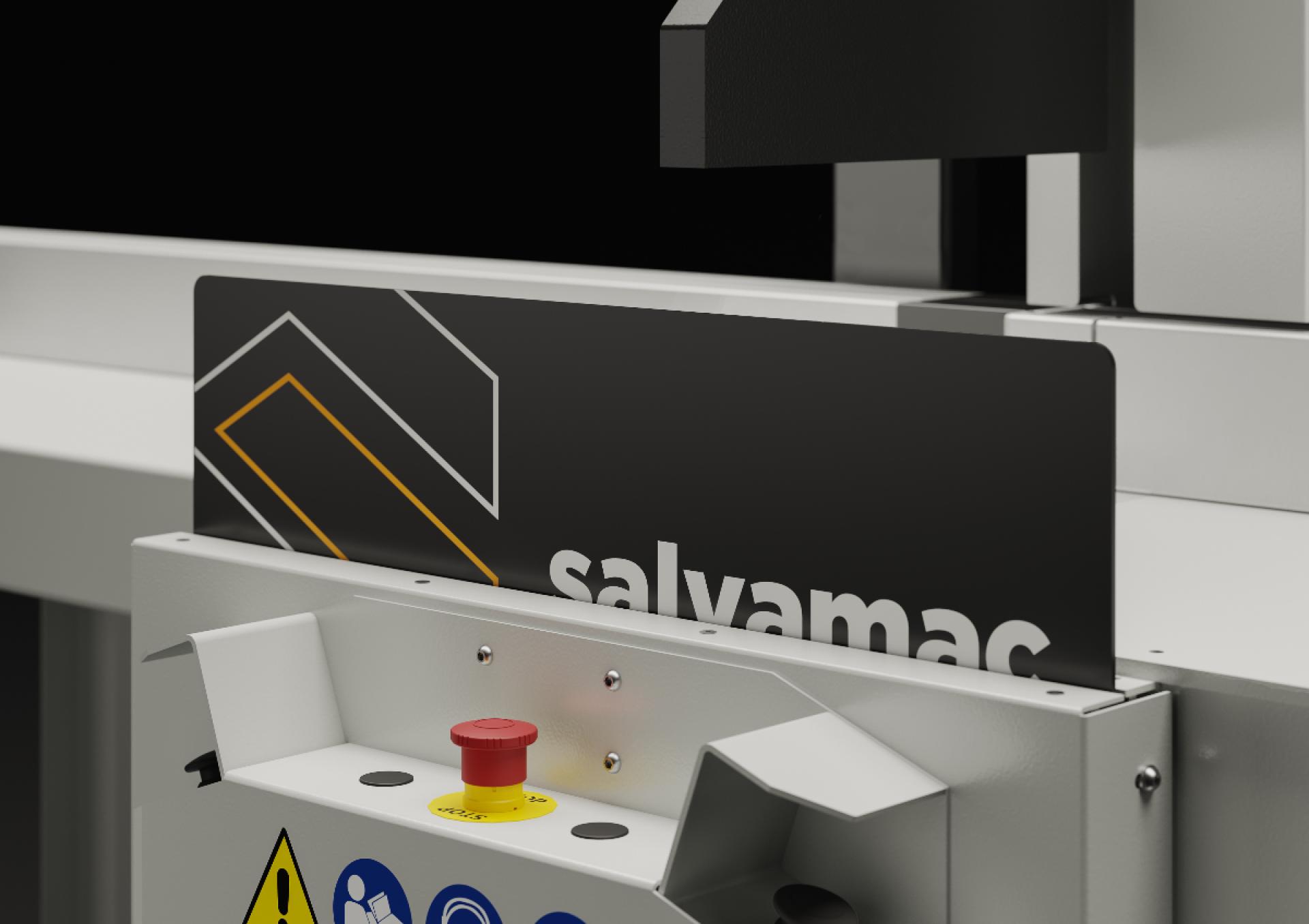

• Ergonomic Safety Controls: Two-handed safety start controls are positioned for optimal operator comfort and protection.

• Adjustable Cutting Speed: Control your feed rate easily with a pneumatic regulator, letting you fine-tune performance to your workload.

• Pneumatic Presser System: Featuring ball bearings, dust-sealed guides, and automatic lubrication — ensuring smooth, reliable presser movement.

• Ground Anchoring: Comes with flanged steel feet for secure floor mounting, minimizing vibration and keeping your cuts precise.

• Safety & Compliance: Fully CE-compliant machine and electrical system, meeting the highest European safety standards.



Why Choose the Legend 600?

Whether you're working with thick planks or wide timber panels, the Legend 600 offers the strength and precision you need. Its combination of a powerful motor, heavy-duty structure, and advanced features (like a pneumatic presser and ergonomic controls) makes it ideal for demanding woodworking operations.

Built for reliability, operator safety, and sustained performance, this saw is a top choice for professional workshops and industrial environments.



Technical Specifications

Specification	Detail
Blade Motor Power	9.2 kW
Rotation Speed	2,750 rpm
Air Consumption / Cycle	14 Nl
Suction Ports	2 × 140 mm

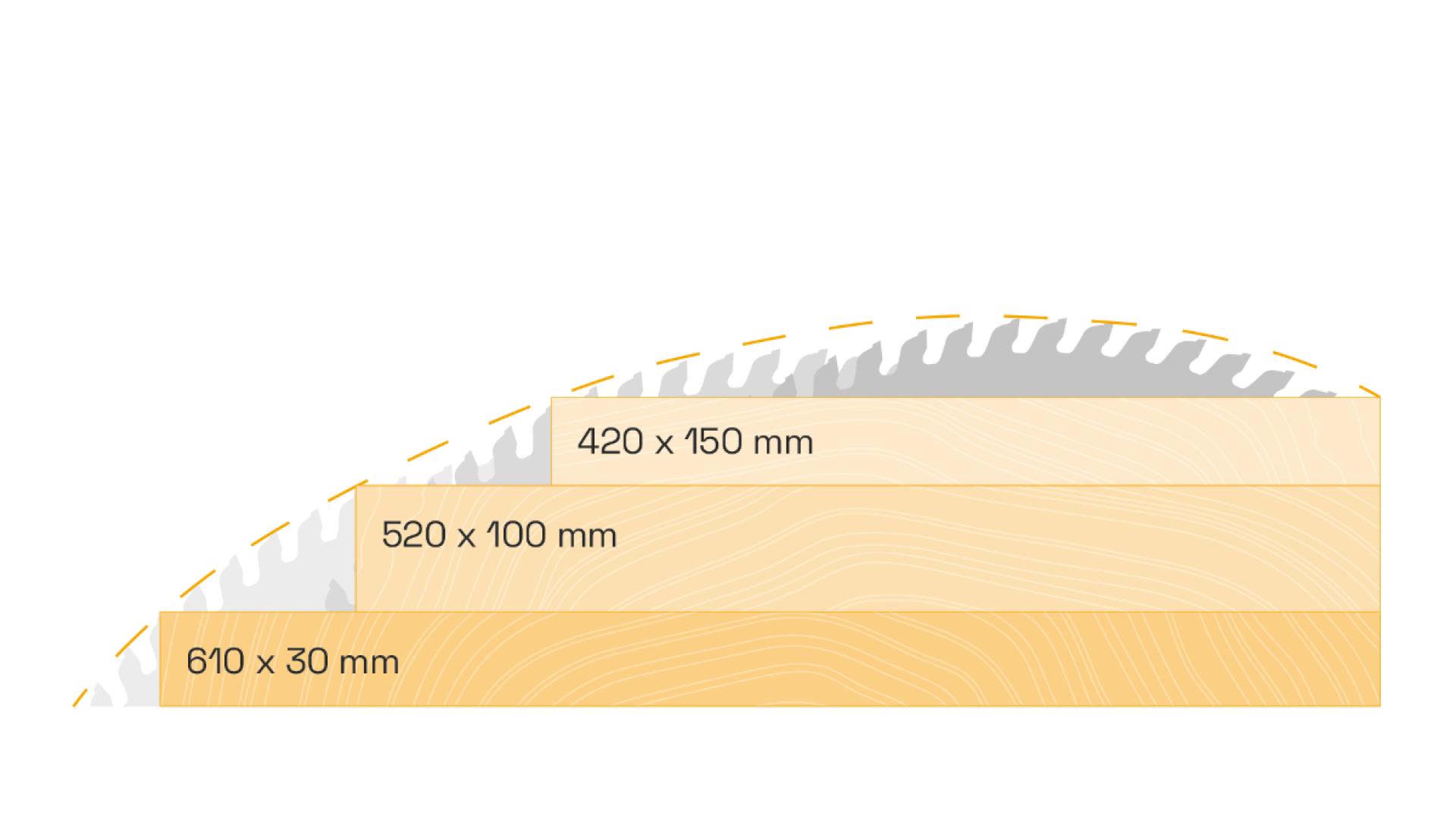

Max Cutting Thickness	150 mm (up to 420 mm Wide)
Max Cutting Width	610 mm (30 mm High)



Optional*

SalvaStop 100 — Electronic Positioning & Pusher System

Automate, Optimise, Save

The SalvaStop 100 is an advanced, numerically controlled length stopper and pusher system designed to increase throughput, reduce labour, and eliminate measurement errors on cross-cut saws.



Interested in the Legend 600?

If you'd like to learn more about the Legend 600, request a quote, or discuss how it could integrate into your workshop, get in touch with us. We’d be happy to answer all your questions and help you make the best choice for your woodworking needs.



Enquire Now
