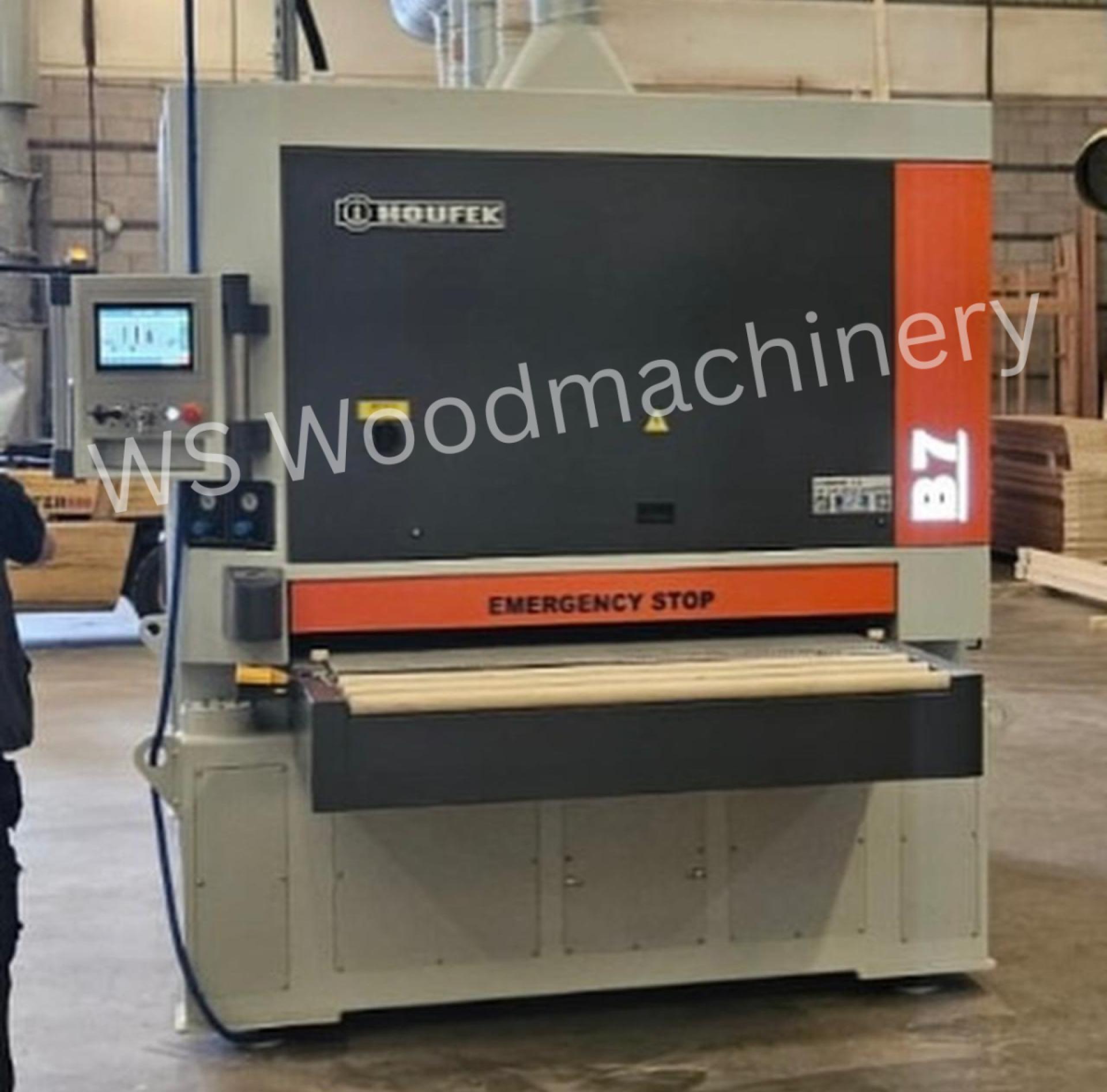

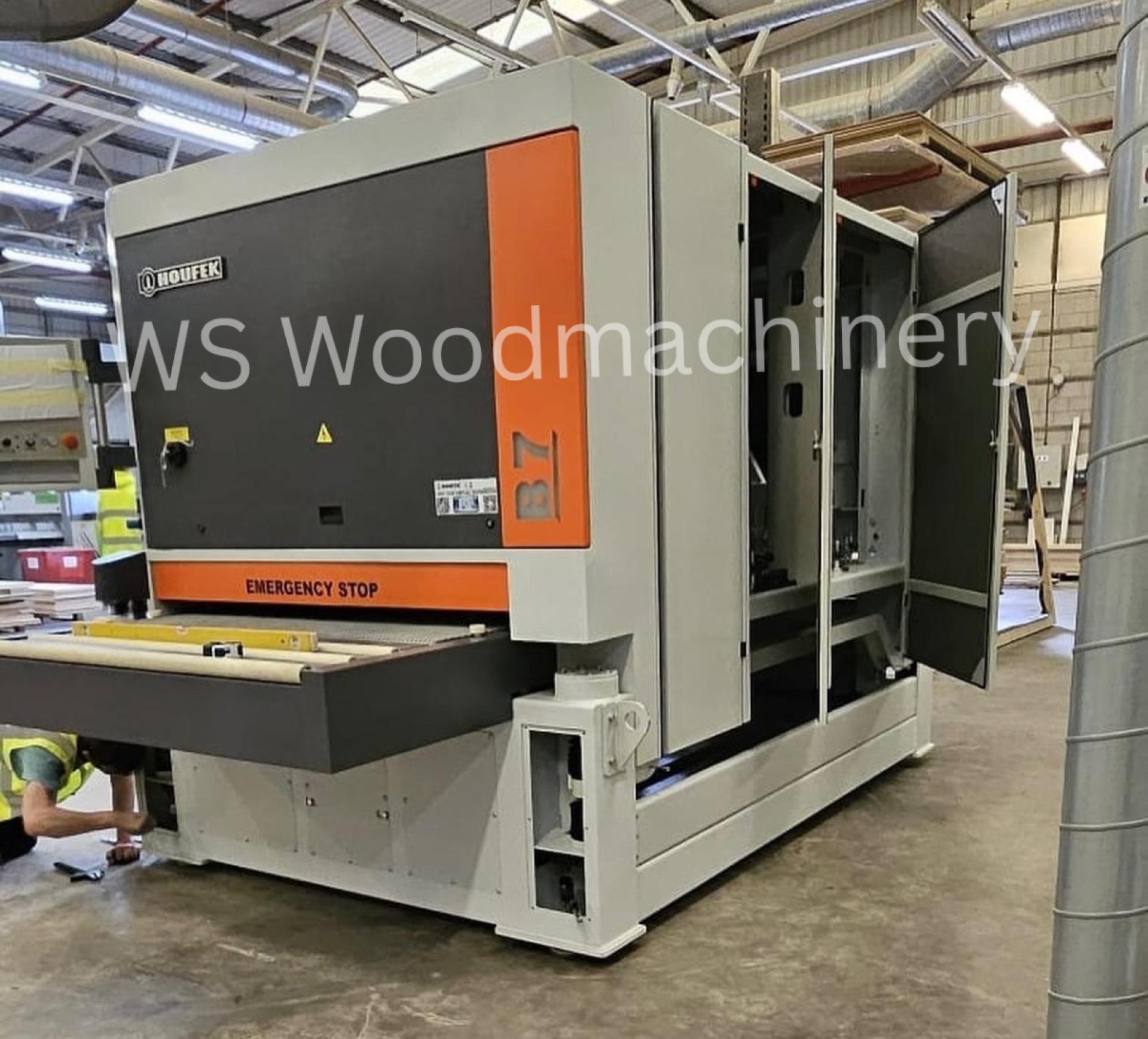

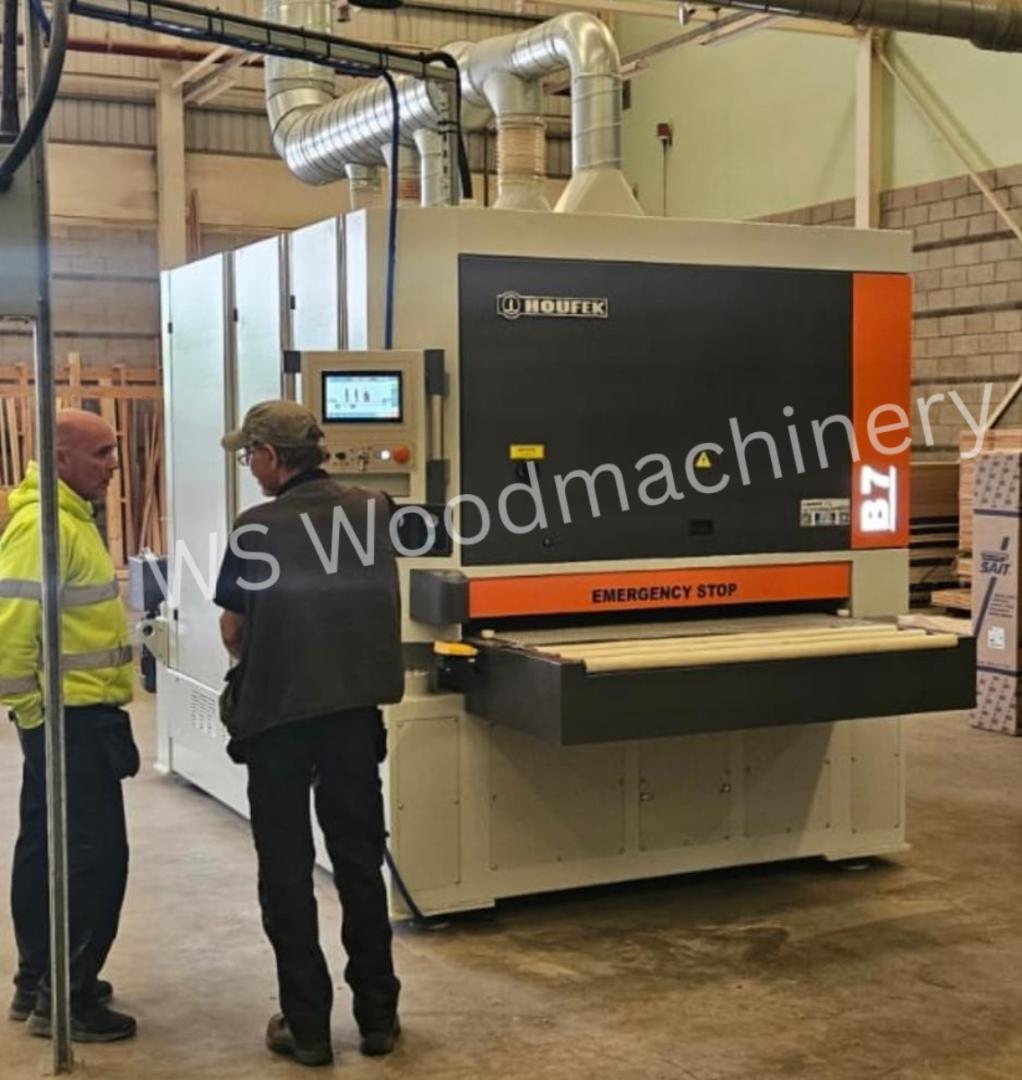

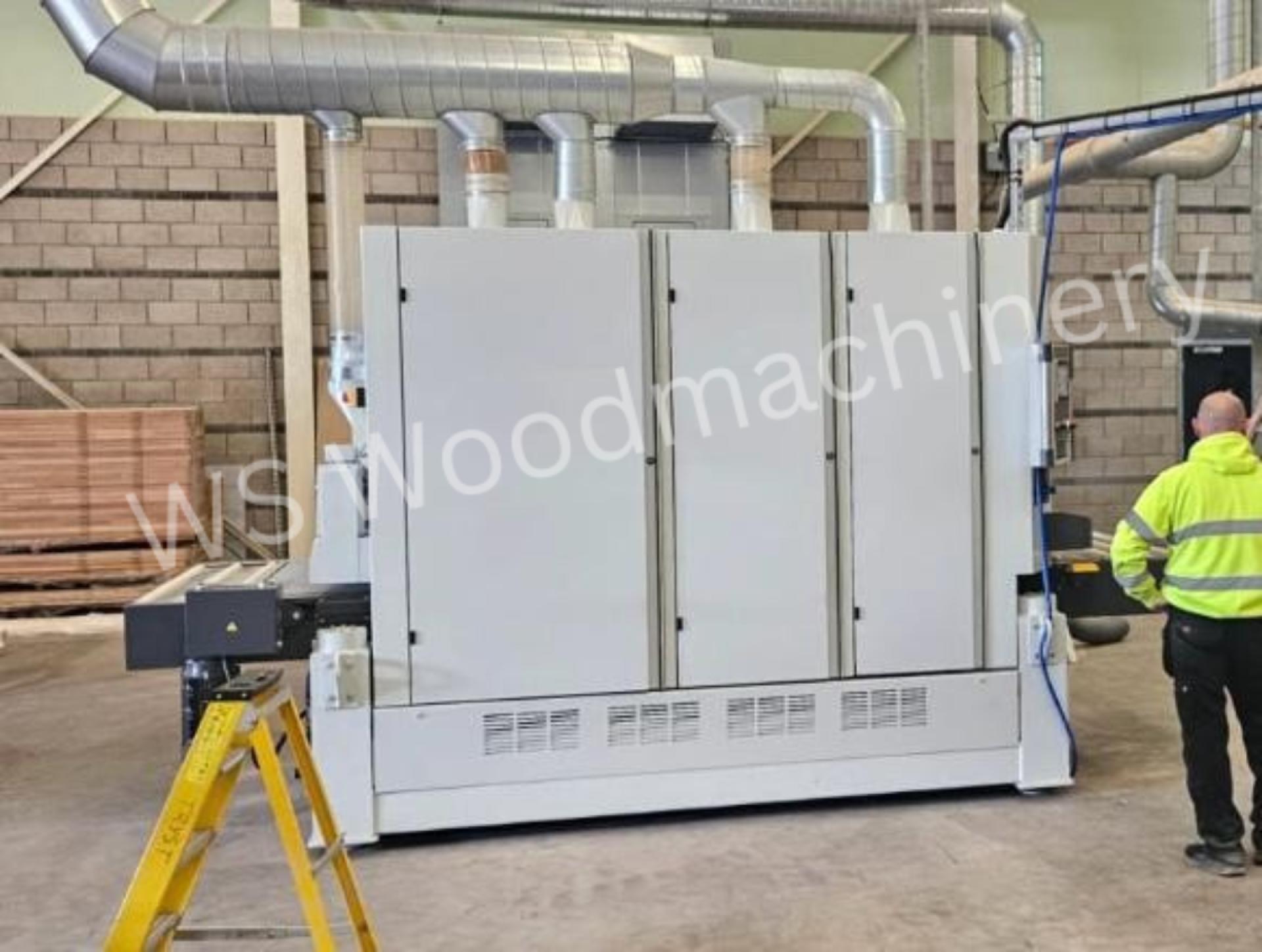

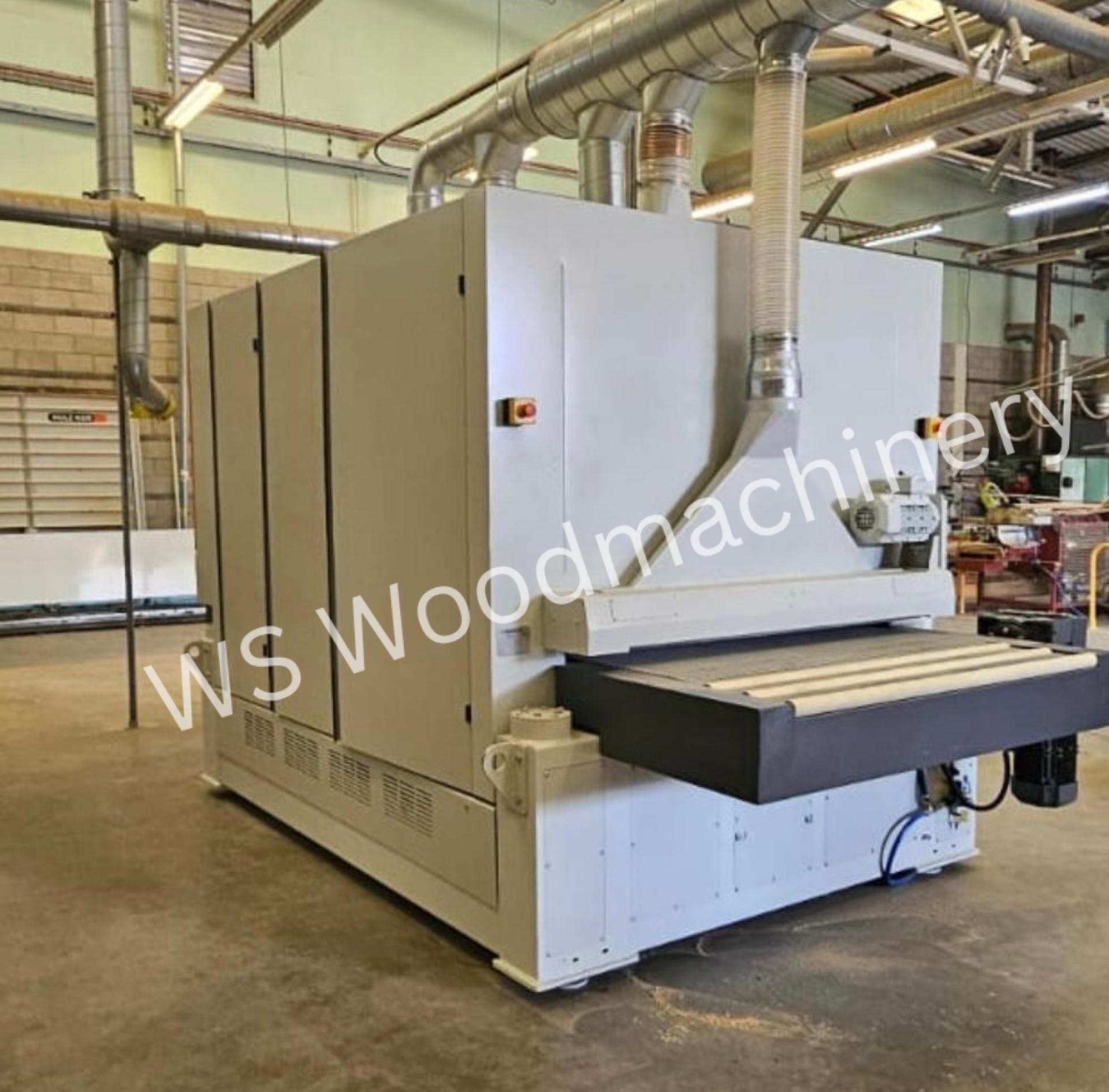

We previously supplied this machine from new. Used 2024 Houfek Buldog 7 WITH FIXED TABLE Wide Belt Sander 1350mm Working Width Additional features added to the standard specification wide belt sander. THIS FIXED TABLE 1350MM WIDE BELT SANDER FOR CALIBRATING AND FINISH SANDING . HAVING A FIXED BED ALLOWS SUPPORT TABLES TO BE LAYED UP AND FRONT AND BACK AT FIXED HEIGHT. THEREFORE NOT REQUIRING THE LIFTING UP AND ONTO THE ADJUSTABLE HEIGHT TABLE NORMALLY OFFERED ON MACHINE INFERIOR WIDE BELT SANDERS Specification 1st Working Group Calibrating Roller in steel 200mm Dia. Motor power increased to 25Hp Optional Included! Upgrade cost to specification with additional group . Calibrating Roller 90sh 200mm Dia to have a wide belt sander with 2nd working groups 3rd Working Group Calibrating Unit and Combi Unit with 50mm Segmented Pneumatic Pad Motor Power increased to 25Hp Calibrating Roller 90sh Rubber Segmented eletronic pad PS50E PS50E - for width 1350mm ▪segment width 50 mm NC machine control, colour Touchscreen 10,1" BandR ▪ sanding belt motor frequency inverter - speed 3-18 m/s ▪ possibility to set the segments of the pad +/- 1 to 3 segments ▪ synchronization of pad raise and fall with variable feed speed ▪ automatic adjustment of working table to set position ▪ digital display of feed belt speed ▪ two-zone timed belt blower with oscillation jet - 1 pc ▪ pressure control 1-3 Bar - manual ▪ sanding pad - steel strap 0,5 mm / rubber / graphite ▪ sanding pad - steel strap 0,5 mm / felt / graphite NC machine control, colour Touchscreen 10,1" BandR ▪ automatic adjustment of working table to set position ▪ electronic height correction by abrasive belt grit size ▪ electronic control of sanding position working unit ▪ programmable adjustment of sanding units - 40 programs ▪ display of main engine load ▪ operating hours counter of individual units ▪ defect messages with graphical display Timed air cleaning device for sanding belt with moving jet – 2 No / 1st and 2nd Working Group. ▪ switching when workpiece passes Automatic Table Positioner for table height settings Module for workpiece cleaning by rotating brush Ø 100 mm ▪ motor power 1,5 kW( 2 HP) ▪ working tool D = 100 mm ▪ cleaning roller - nylon ▪ at the output of machine ▪ suction outlet D = 150 mm width D=180mm ▪ pressure rollers Working Height increased to maximum 220mm Infeed and Outfeed Extension Rollers 300mm Each for maximum support of components. Pictures are from when we delivered and installed the Houfek-Buldog 7-Wide Belt Sander contact us now for more information on 01236 432700 or email us info@wswoodmachinery.com
