Industrial Resaw – Pre-Owned and Ready to Work

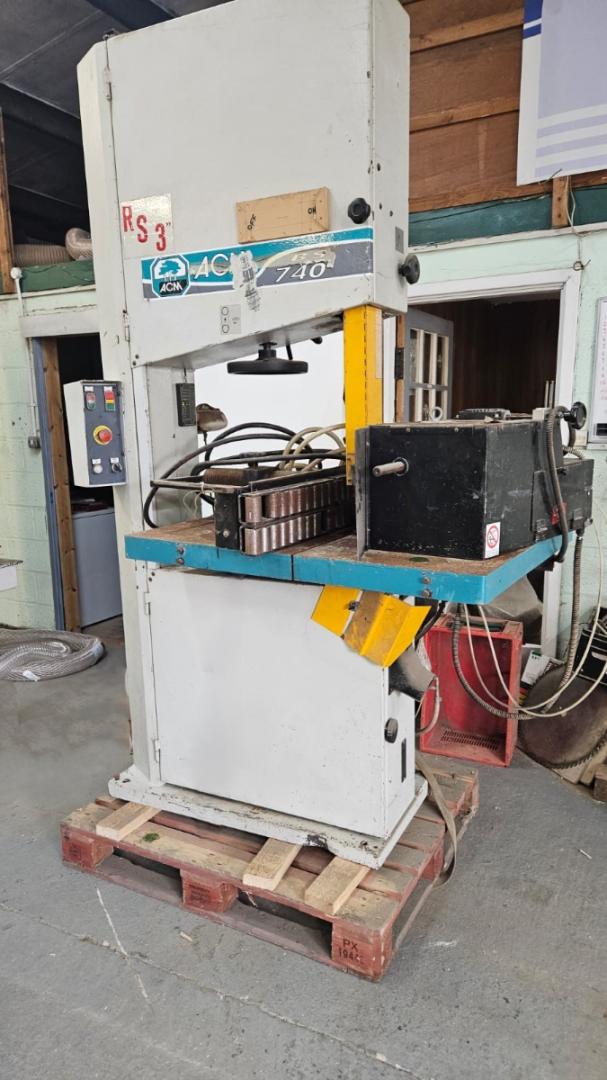

We have a used ACM BS 740 RS 3" Resaw available for immediate sale. Built in Italy and CE-certified, this machine combines high throughput, precision cutting, and robust industrial performance, making it ideal for professional woodworking operations



Used ACM Resaw Machine Overview



• Condition: Used – Excellent Working Order

• Brand / Model: ACM BS 740 RS 3"

• Origin: Italy

• Category: Industrial Bandsaw / Resaw

• Application: High-volume, precision timber resawing



Technical Specifications



Motor & Electrical

• Motor Power: 15 BHP

• Phase / Frequency: 3-phase, 50 Hz

• Motor Type: Self-braking for rapid stopping

• Starter: Automatic star-delta for smooth startup



Flywheels & Blade System

• Flywheels: Solid steel, 1/3 crowned, no rubber coating

• Cleaning: Bronze scrapers keep flywheels clean

• Lubrication: Gravity-fed blade lubrication with felt pad

• Blade Tension: Integrated tension gauge for accuracy

• Blade Guides: Wooden inserts, upper & lower

• Blade Guide Lift: Rack & pinion system with integrated protection



Cutting Capacity

• Max Cutting Height: 450 mm

• Max Cutting Width: 710 mm

• Blade Lengths:

  • Min: 5310 × 80 × 0.9 mm

  • Max: 5420 mm

• Blade Speed: 1600 m/min



Table & Frame

• Table Size: 860 × 1100 mm

• Tilt Range (CE Version): 0–20°

• Construction: Heavy-duty cast table & reinforced steel frame

• Net Weight: 670 kg



Safety Features

• CE-compliant emergency stop system

  • Front: Cable-actuated

  • Rear: Push-button

• Self-braking motor for immediate stopping



Dust Extraction

• 2 × 140 mm dust extraction outlets for clean operation







Why Choose This Used ACM Resaw?

• Industrial-grade durability with Italian engineering

• Cost-effective solution versus new machinery

• Fully inspected and in excellent working condition

• Ideal for sawmills, furniture production, and high-volume timber processing
