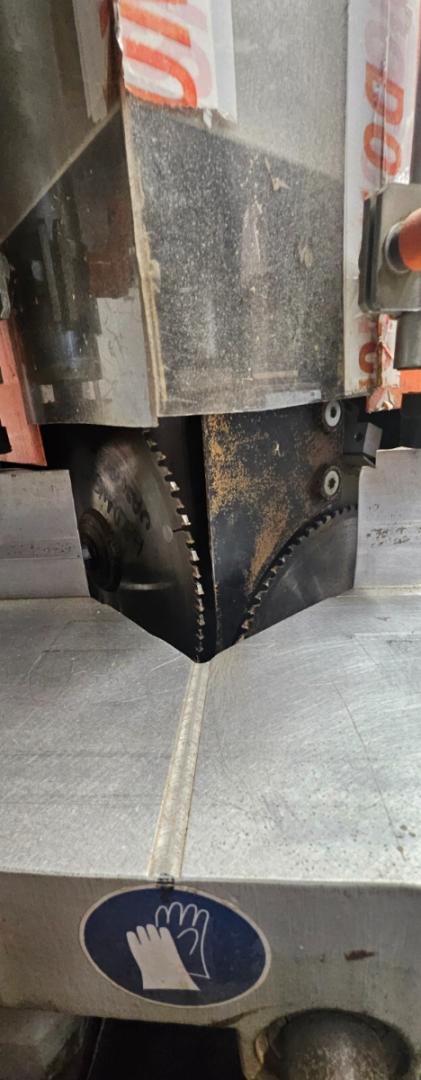

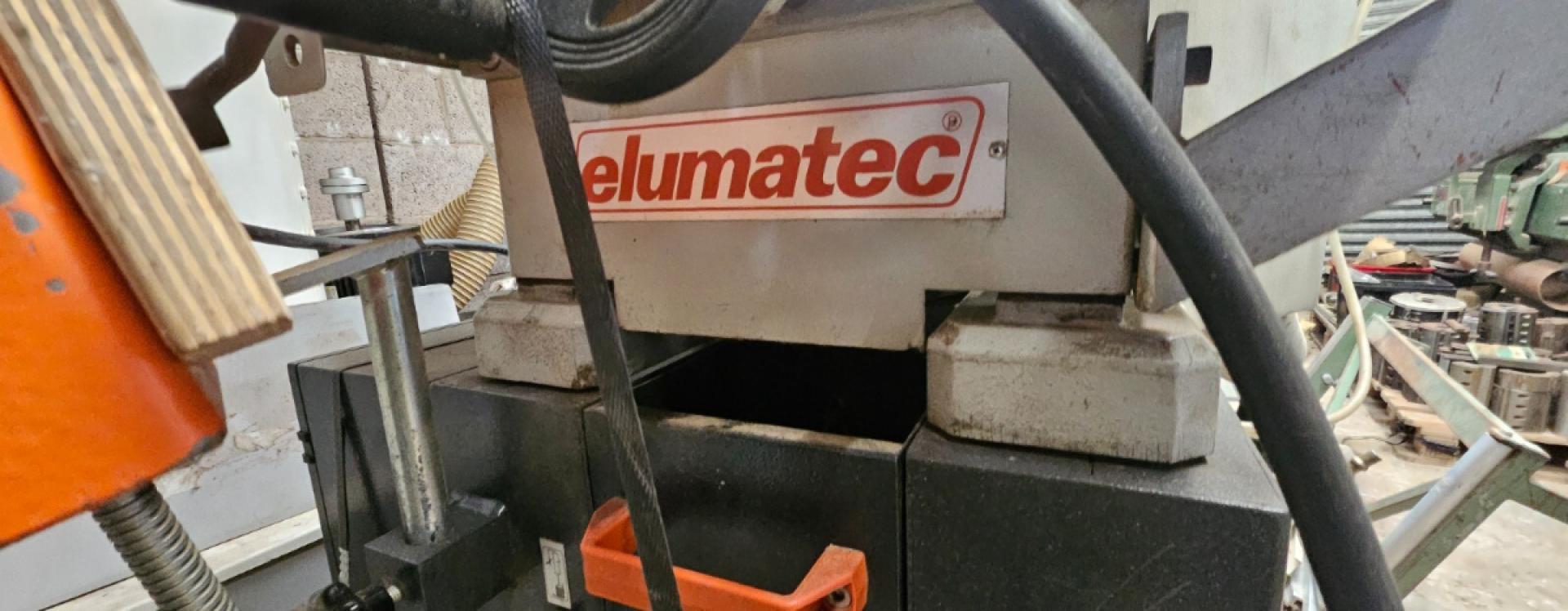

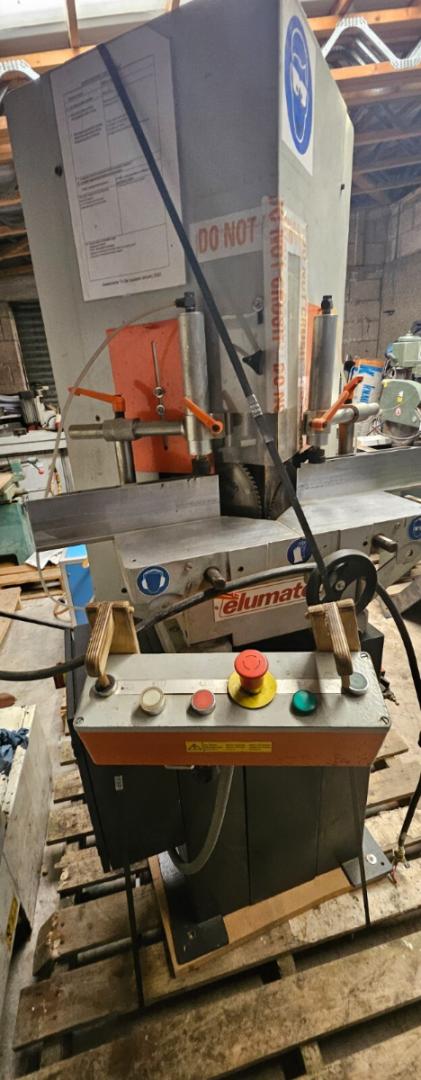

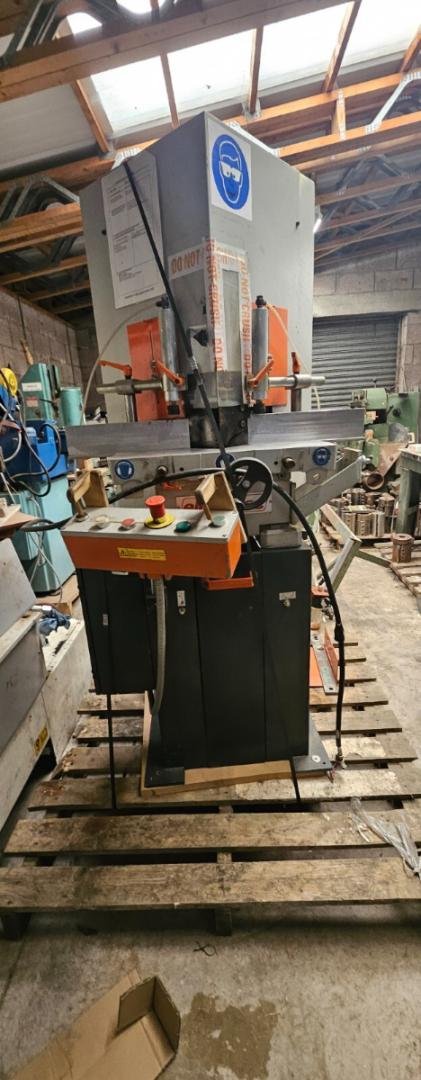

Elumatec KS 101 Precision Vee-Cut Saw – Used, Excellent Condition

The Elumatec KS 101 is a precision vee-cut and notching saw designed for fast, accurate, and repeatable cutting of aluminium and PVC profiles. This machine delivers exceptional cutting performance through its pneumatic, continuously adjustable saw blade feed, ensuring smooth, precise operation with rapid return for high productivity.



Key Features

• Precision Vee-Cuts in aluminium and PVC profiles

• Pneumatic blade feed – continuously adjustable for optimal cutting speed and surface finish

• Fast and precise sawing with automatic rapid return stroke

• Simple depth adjustment for easy setup and repeatability

• Integrated swarf extraction port and collection container

• Equipped with saw blades and pulsed coolant system as standard for clean, cool cutting

• Compact, robust construction for workshop durability



Technical Specifications

• Cutting depth: up to 80 mm

• Profile height: up to 100 mm

• Saw blade diameter: 300 mm

• Blade speed: 2,800 rpm

• Power supply: 230/400 V, 3-phase, 50 Hz

• Motor output: 0.9 kW per motor

• Compressed air supply: 7 bar

• Air consumption per cycle: 20 L (without spray) / 44 L (with spray)

• Machine dimensions: 980 mm (L) × 800 mm (D) × 1,650 mm (H)

• Weight: approx. 240 kg



Standard Equipment

• Saw blades

• Pulsed coolant system

• Swarf extraction hose connection and collection container



Optional Accessories

• Material clamping units

• Length stop and measuring systems

• Roller conveyor

• High-performance cutting fluid

• Additional saw blades



Condition

Used, fully operational, in good working condition. Cleaned, tested, and ready for immediate use in production or workshop environments.



Elumatic Mitre Notching Saw
