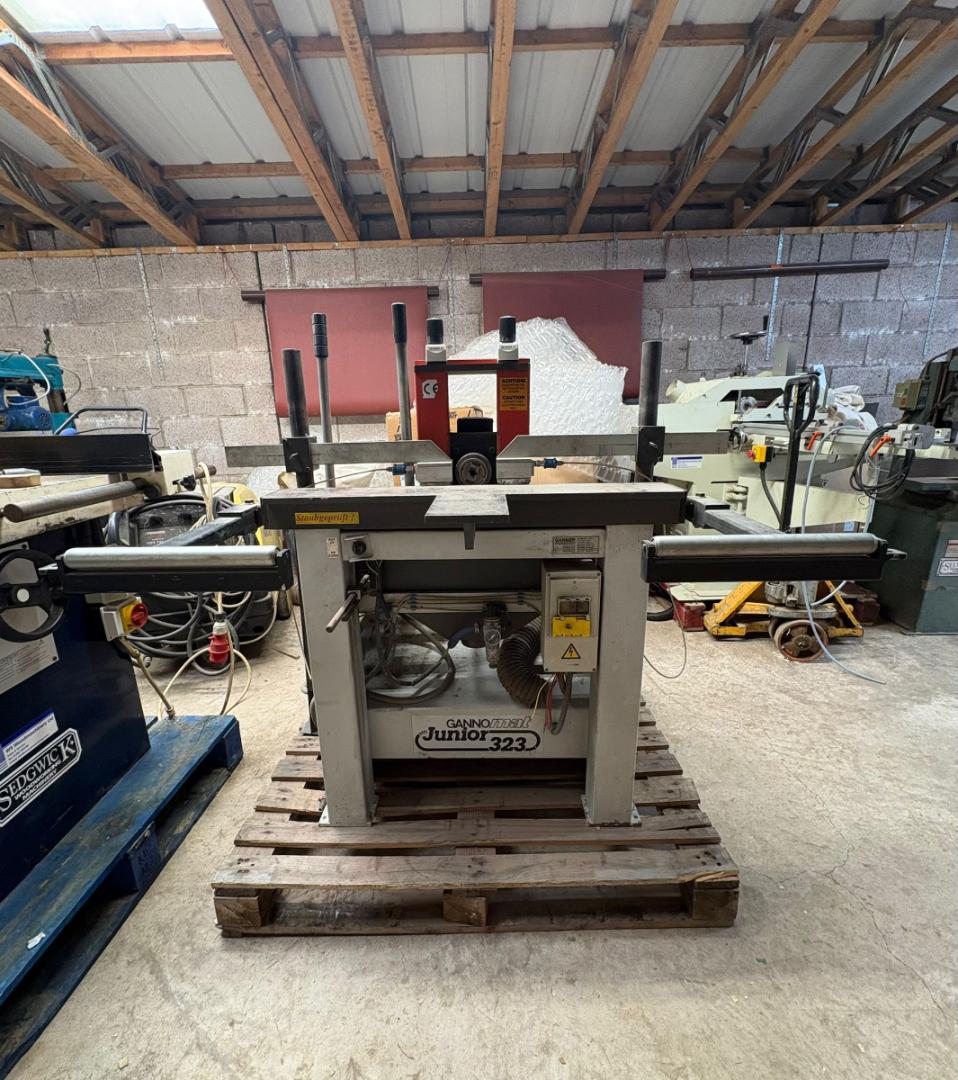

Used GANNOMAT JUNIOR 323 Frame Drilling and Mortising Machine
Used GANNOMAT JUNIOR 323 Frame Drilling and Mortising Machine
Used GANNOMAT JUNIOR 323 Frame Drilling & Mortising Machine For Sale
Power Supply: 400V, 3-Phase, 50 Hz
Condition: Used – Good Working Order
Features & Specifications
- Maximum chuck opening: 20 mm shank diameter
- Motor: 1.5 kW, 2800 RPM
- Horizontal (side-to-side) head adjustment with precision bar at standard 12 mm centres

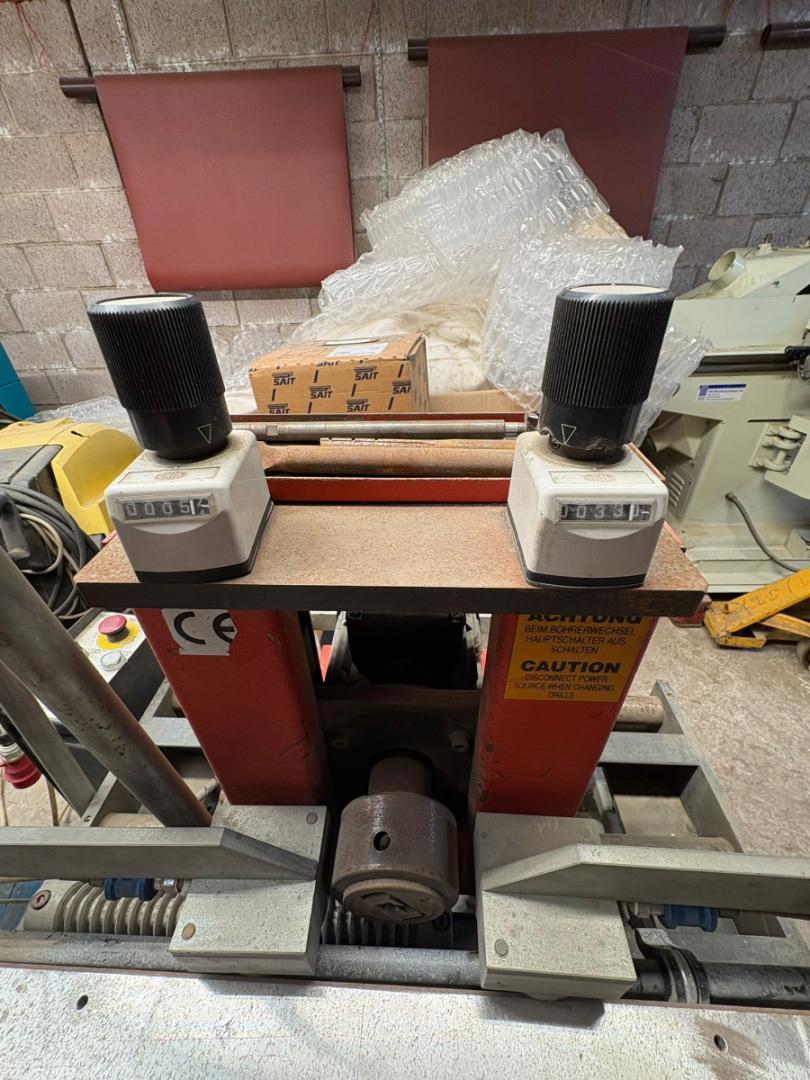

- Two-level position adjustment with digital counters
- Pneumatically operated adjustment range: 0–100 mm
- Maximum boring depth: 150 mm
- 2 pneumatic safety clamping cylinders
Included Equipment
- Complete stopping system including:
- Centre stop
- Fence for oversized frames
- 850 mm round stopping rod (usable on left or right side)
- 2 stops
- Mortising stopping system with 2 stops
Description
Reliable and versatile frame drilling and mortising machine suitable for woodworking, door and window frame production, cabinet manufacturing, and general joinery applications. The machine has been used and is offered in good working condition.
Price
£3,500.00 + VAT
Location
Showroom Coatbridge ML5 2QA
Contact
Telephone: 01236 432700
Email: info@wswoodmachinery.com
