Used Weinig Rondamat 950 Profile Grinder
Used Weinig Rondamat 950 Profile Grinder
Used Weinig Rondamat 950 Profile Grinder for Sale

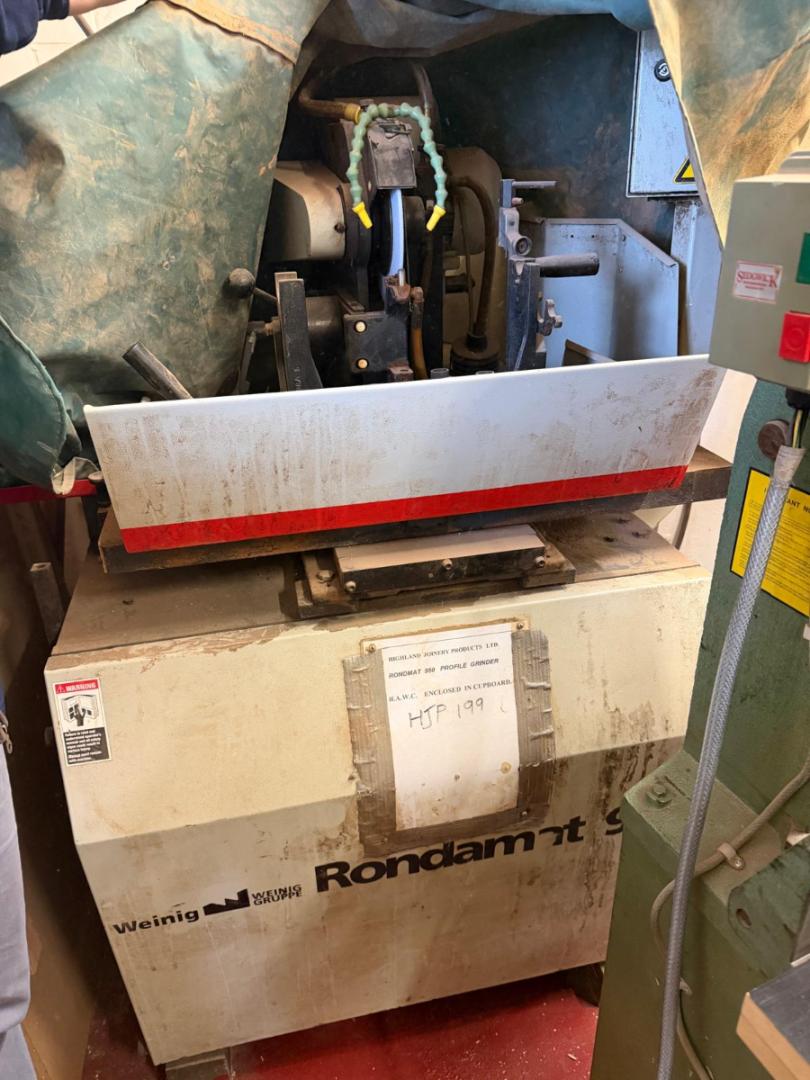

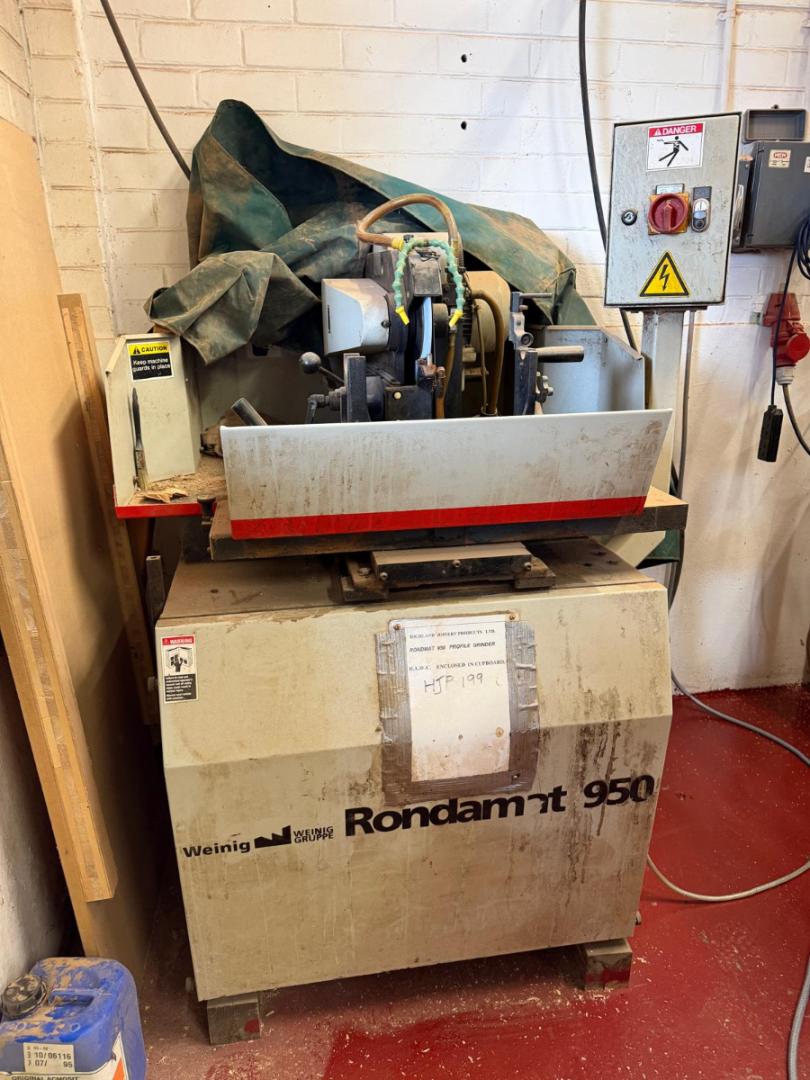

The Weinig Rondamat 950 is a reliable, manual entry-level profile grinder designed for the accurate sharpening and production of profiled knives. Renowned for its precision and durability, this machine is ideal for woodworking businesses requiring consistent grinding performance for moulding and planing tools.
Equipped with a 1.5 HP grinding motor, smooth linear bearings on the tool carriage, and a 10-gallon coolant system, the Rondamat 950 delivers efficient operation while maintaining excellent grinding accuracy. Its adjustable spindle speeds and versatile grinding wheel options make it suitable for a wide range of tooling applications.
Specifications
| Specification | Details |
|---|---|
| Machine Model | Weinig Rondamat 950 |
| Machine Type | Manual Profile Grinder |
| Main Motor | 1.5 HP |
| Maximum Tool Width (Arbor Length) | 240 mm |
| Tool Cutting Circle | 100 mm – 230 mm |
| Tool Mounting Arbor | 38.1 mm (1½") |
| Spindle Speeds | 1,500 / 1,700 / 2,400 / 3,000 RPM |
| Grinding Wheel Diameter | 150 mm – 225 mm |
| Grinding Wheel Bore | 60 mm |
| Grinding Wheel Widths | 2 mm, 3 mm, 4 mm, 10 mm |
| Radial (Back) Clearance Angle | 15° – 35° |
| Axial (Side) Clearance Angle | 0° – 10° (up to 12° depending on configuration) |
| Coolant System | 10-gallon (approx. 50-litre) tank with pump |
| Electrical Supply | 3-Phase, 230V or 460V |
| Machine Dimensions | Approx. 1,270–1,525 mm (L) × 1,220–1,270 mm (W) × 1,220–1,400 mm (H) |
| Machine Weight | Approx. 580 kg |
Key Features
- Manual profile grinder for sharpening and producing profiled knives
- Precision linear-bearing tool carriage for smooth operation
- Powerful 1.5 HP grinding motor
- Four adjustable spindle speeds for different grinding applications
- Supports grinding wheels from 150 mm to 225 mm
- Integrated 50-litre coolant system with pump
- Adjustable radial and axial clearance angles for accurate profile grinding
- Robust, heavy-duty construction for long-term reliability
- Ideal for woodworking, joinery, moulding, and planing tool maintenance
